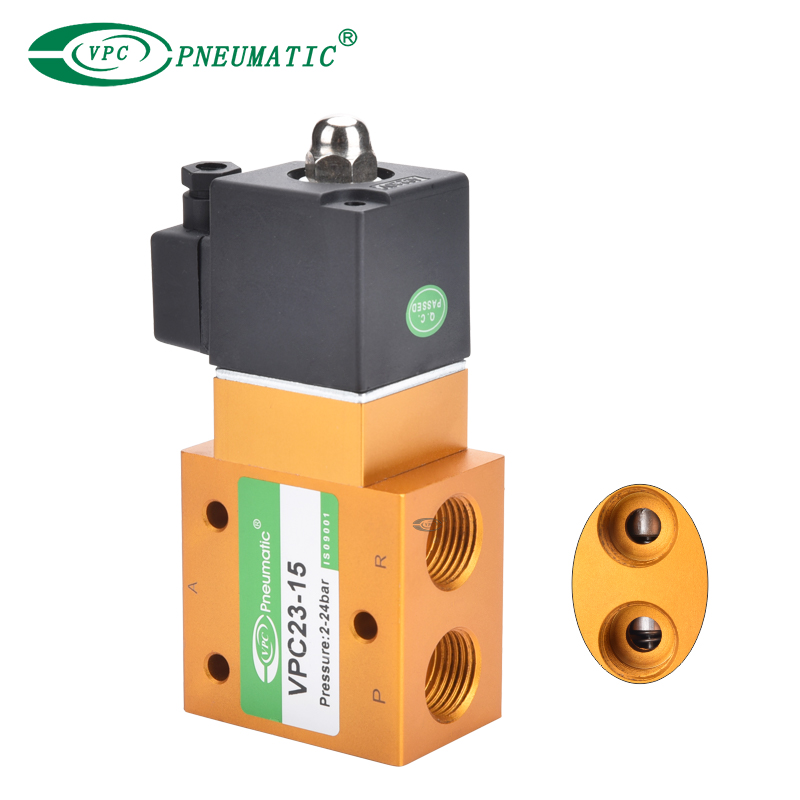

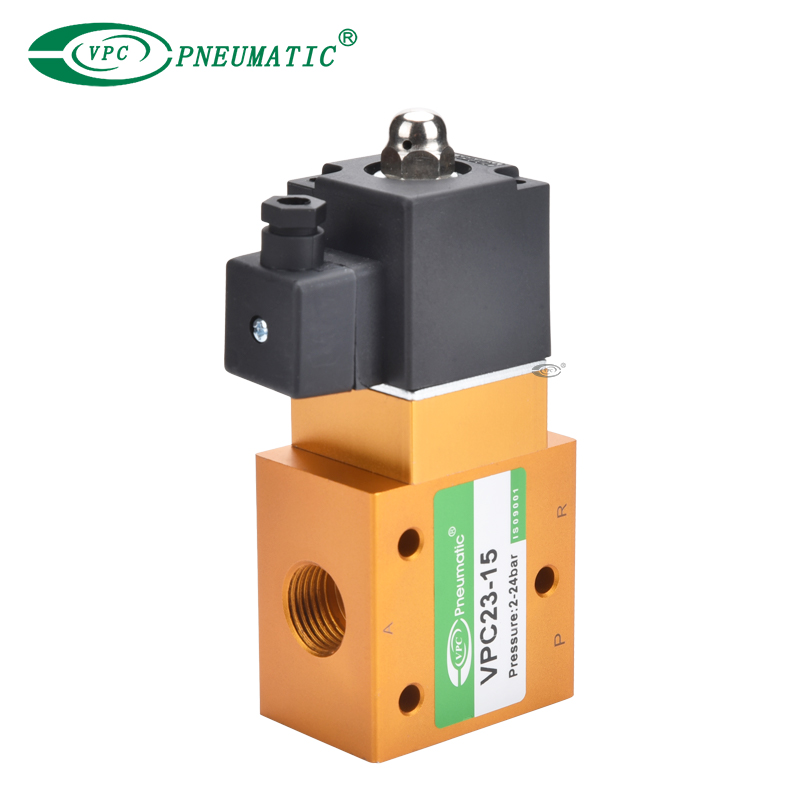

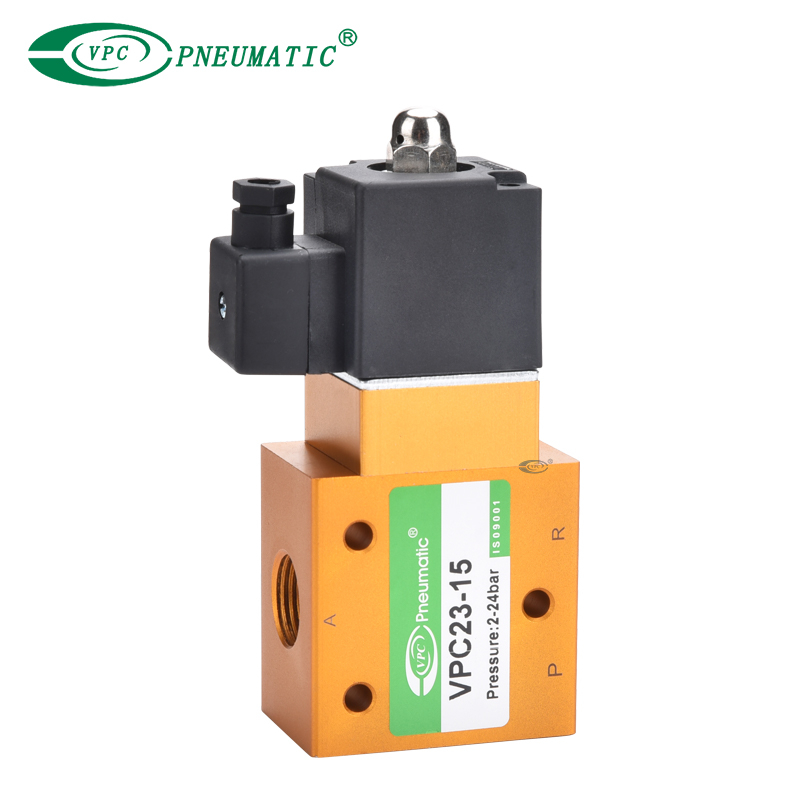

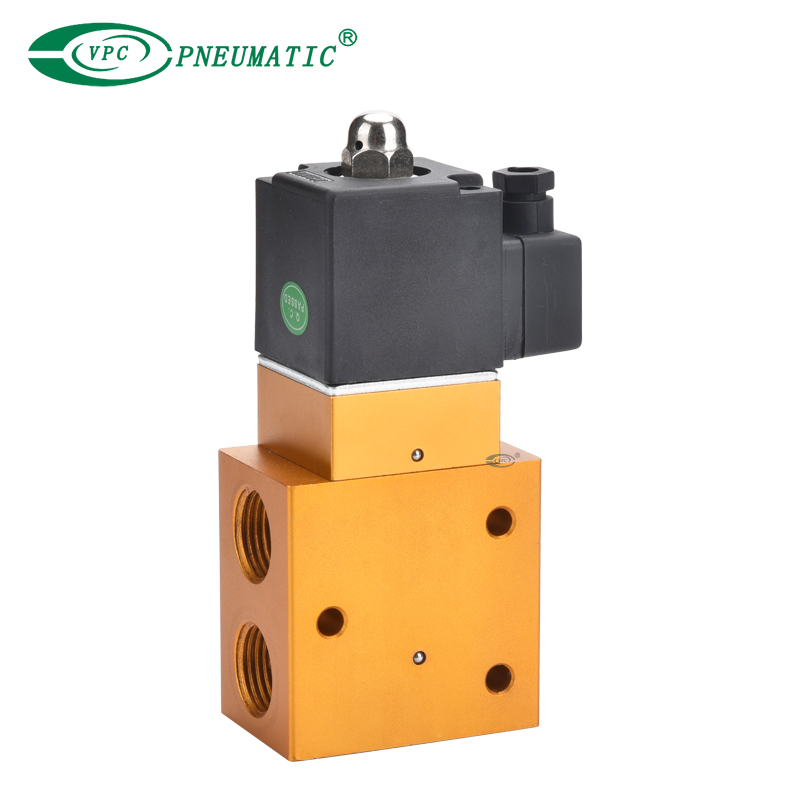

VPC23 Series High Pressure Solenoid Valve 24 Bar

VPC23 series is a high pressure 3/2 way normally closed air solenoid valve designed for demanding applications such as PET bottle blowing and air blasting systems. With a working pressure range from 0.2 to 2.4MPa (up to 3.5MPa for H type), it provides safe and reliable switching of compressed air in high pressure and high flow circuits.

Model:
VPC23-15
Brand:
VPC

Standard voltage:	AC110V, AC220V DC12V, DC24V
Guaranteed pressure:	0.15 to 2.4 MPa
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

High pressure design

Working pressure 0.2–2.4MPa, H type up to 0.2–3.5MPa (2–35 bar), suitable for high pressure bottle blowing and industrial blasting lines.

Fast response

Switching time ≤0.04s (8mm) and ≤0.08s (15mm), supports frequent cycling and stable machine takt time.

Durable materials

NBR seals with brass or aluminum body and reinforced plastic end cap, designed for long life in harsh environments.

Long service life

Tested lifetime ≥150,000 cycles, reducing unplanned downtime and maintenance cost.

■ Symbol

high pressure valve

Product Specifications

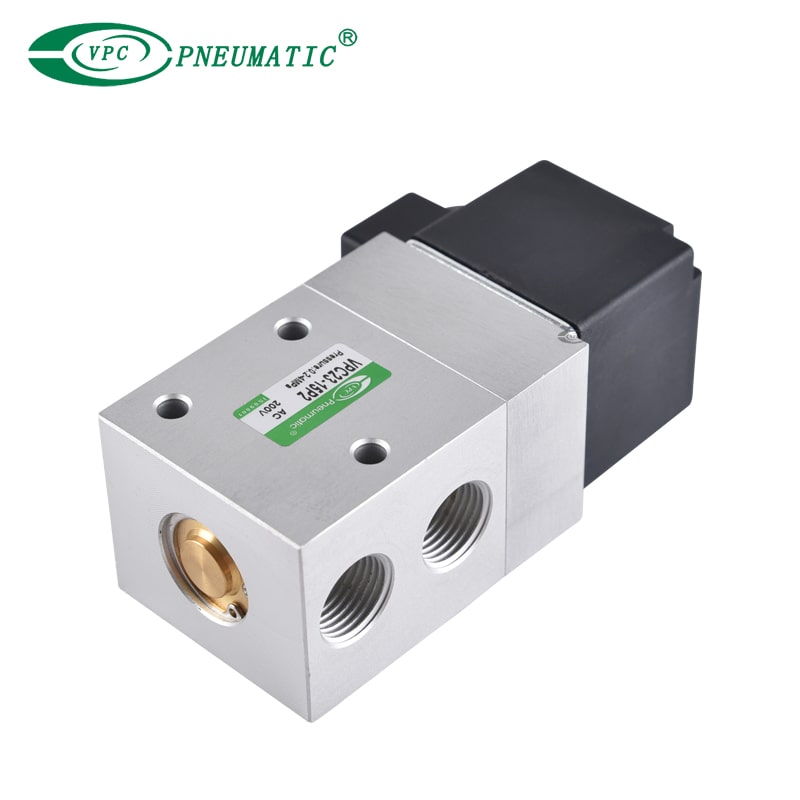

Model	VPC23-8	VPC23-8P₂	VPC23-15	VPC23-15P₂	VPC23-15H
Working medium	Air
Acting type	Normal close
Orifice	8mm		15mm
Port size	G1/4		G1/2
Working pressure	0.2 to 2.4 MPa				0.2 to 3.5 MPa
Working temperature	-5 to 50℃
Seat	NBR
Body	Brass				Aluminum
Reversing time	≤0.04s		≤0.08s
Net sectional area	≥20m㎡		≥60m㎡
Port size	≥150 thousand times
Lubrication	Not Required
Voltages available	DC12V, DC24V, AC110V, AC220V
