VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve
VPCE Series High Pressure Solenoid Valve VPCE Series High Pressure Solenoid Valve

loading

VPCE Series High Pressure Solenoid Valve

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  1. Normal close, available body: Brass,SS304 SS316;
  2. Multiple seals are available for different medium;
  3. Wide size range from1/4" to 1", with thread;

  • VPCE020-20L

  • VPC Pneumatic

Working medium:
Air/Gas/Water/Oil
Type:
Normal close
Working temperature:
-10 to 80℃
Working Pressure :
Max. 5.0MPa
Body Material:
Brass,SS316
Availability:
Inquire Add to Basket

Product Description

high pressure solenoid valve

Product Specifications

  Model
  Orifice
  Joint Size
  Working Pressure
  KV Value
  Ambient Temp.
  Working Temp.
VPC008-13L
13mm
G1/4"
0.1~5.0Mpa
  2.52m3 /h
-10~50℃
-10~80℃
VPC008-15L
15mm
G1/4"
0.1~5.0Mpa
2.8m3 /h
VPC010-13L
13mm
G3/8"
0.1~5.0Mpa
  2.52m3 /h
VPC010-15L
15mm
G3/8"
0.1~5.0Mpa
2.8m3 /h
VPC015-13L
13mm
G1/2"
0.1~5.0Mpa
  2.52m3 /h
VPC015-15L
15mm
G1/2"
0.1~5.0Mpa
2.8m3/h
VPC020-15L
15mm
G3/4"
0.1~5.0Mpa
2.8m3/h
VPC020-20L20mmG3/4"0.1~4.0Mpa5.0m3/h
VPC020-23L23mmG3/4"0.1~4.0Mpa7.1m3/h
VPC025-23L23mmG1"0.1~4.0Mpa7.1m3/h
 VPC025-25L
25mm
G1"
0.1~4.0Mpa
8.1m3/h

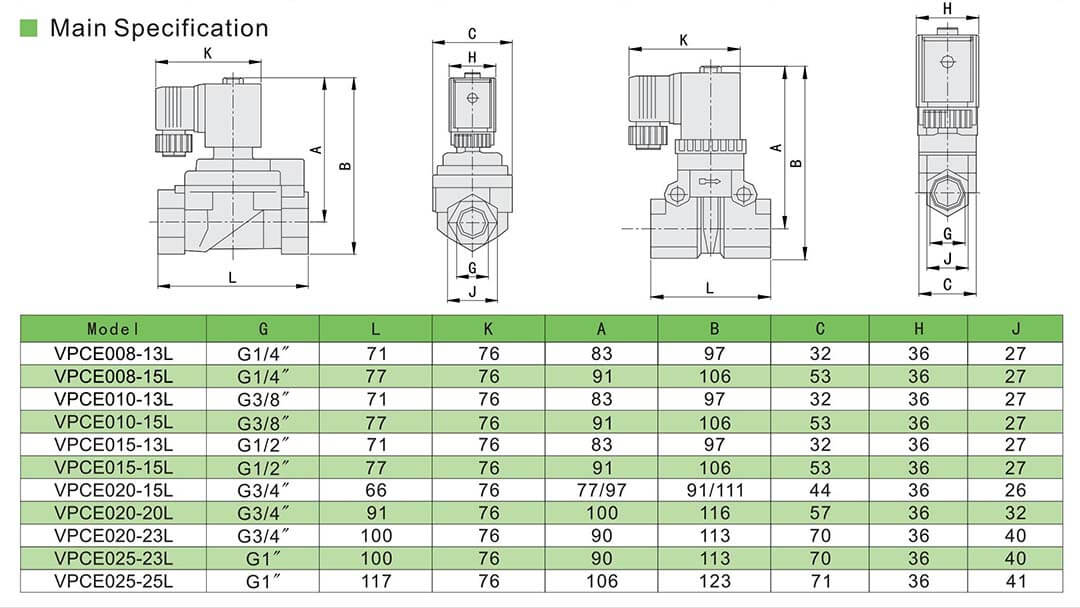

Main Dimensions

solenoid valve high pressure

PDF Download

download VPCE Series High Pressure Solenoid Valve.pdf
