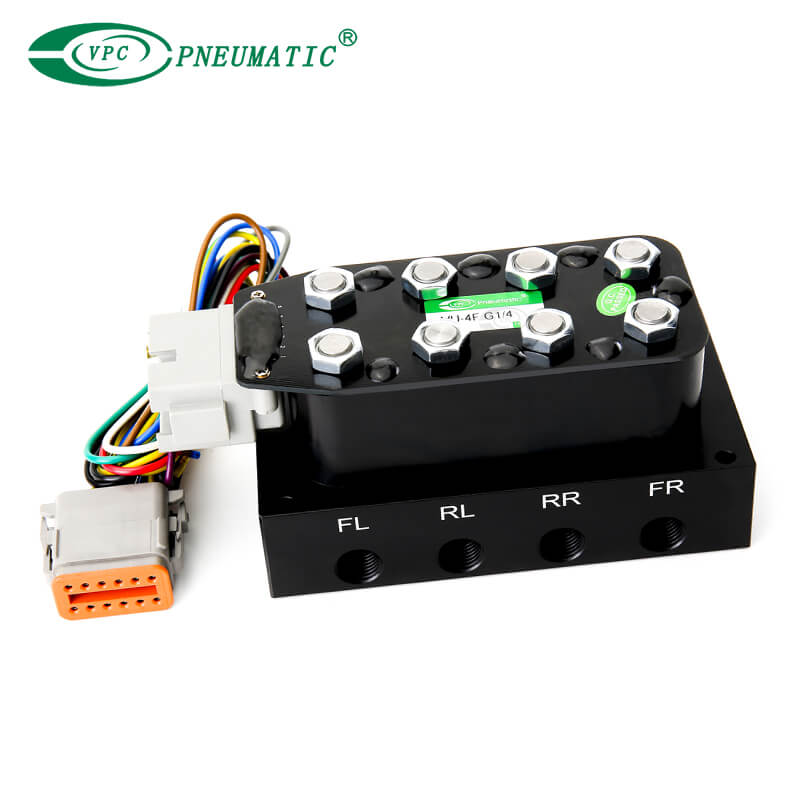

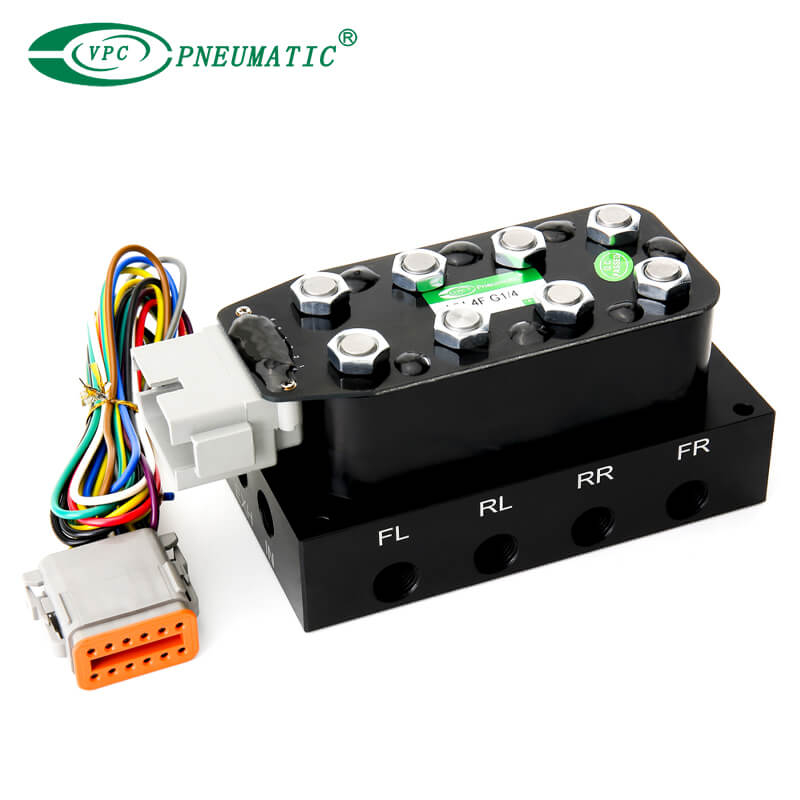

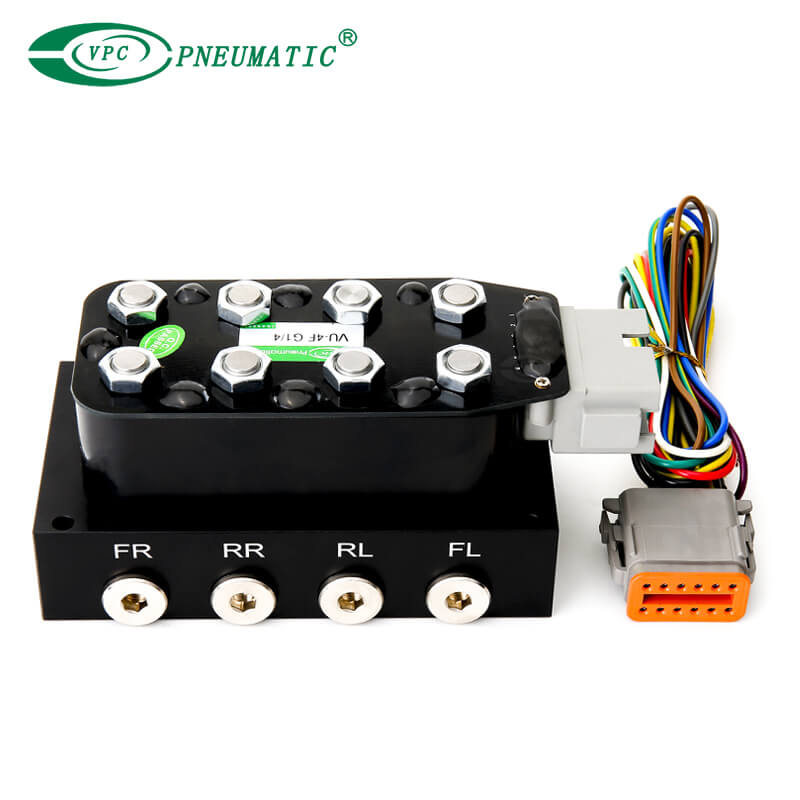

VU4
VPC
8481804090
| Availability: | |
|---|---|
Product Description
| Compatiable Suspension Type | 4-Corner Full Air Suspension |
| Voltage Requirements | 10.5 to 16 Volts |
| Current Requirements | 1.1 Amps (for each of the (8) Valves) |
| Connectors | IP67 certified (immersion up to 3 ft) |
| Fitting Size | 3/8”NPT x 4 , 1/4” NPT x 2 |
| No. of Inlet Ports | 2 |
| No. of Exhaust Ports | 2 |
| Max Operating Pressure | 200Psi |
| Cv Flow Factor | 0.33 |
| Average Adjustment Time | 2.2 Seconds (from 10% to 50% of travel) |
* VU4 valve block applicable for truck, vw transporter, ford transit, motorhomes, land rover defender, bmw, range rover etc cars.
· VU4 valve block function
Air suspension solenoid valves are electronic valves that open and close to fill or vent each airbag. A single valve will control each corner of your air suspension system. The valves are integrated into a valve manifold and are installed between the compressor and the airbags.
· VU4 valve block work principle
These " gates " allow air to flow from your air tank to your airbags through the airline. Our valves are normally closed, and air can't pass through until the valve is activated with 12-volt power from your toggle switch, controller, or switch box.
Air Suspension Control Valves automatically control the vehicle's ride height by inflating and deflating the air suspension bellows to adjust for variations between loaded and unloaded vehicles.
· VU4 valve block reason for stopping work
Over time its O-rings can dry rot, causing damage to the compressor via air leaks and overworking, along with moisture damage to the electrical solenoid components.
