M322
VPC Pneumatic
8412909000
| Working medium: | |
|---|---|
| Control mode: | |
| Working pressure: | |
| Working temperature: | |
| Joint size: | |
| Availability: | |
Product Description

Product Specifications
| Model | M221 | M322 | M522 |
| Working medium | Clean air | ||
| Control mode | Mechanical control/Manual control | ||
| Lubrication | No | ||
| Working pressure | 0.15 to 0.8Mpa | ||
| Max pressure | 1.2Mpa | ||
| Working temperature | -5 to 80℃ | ||
| Joint size | G1/8", G1/4" | ||

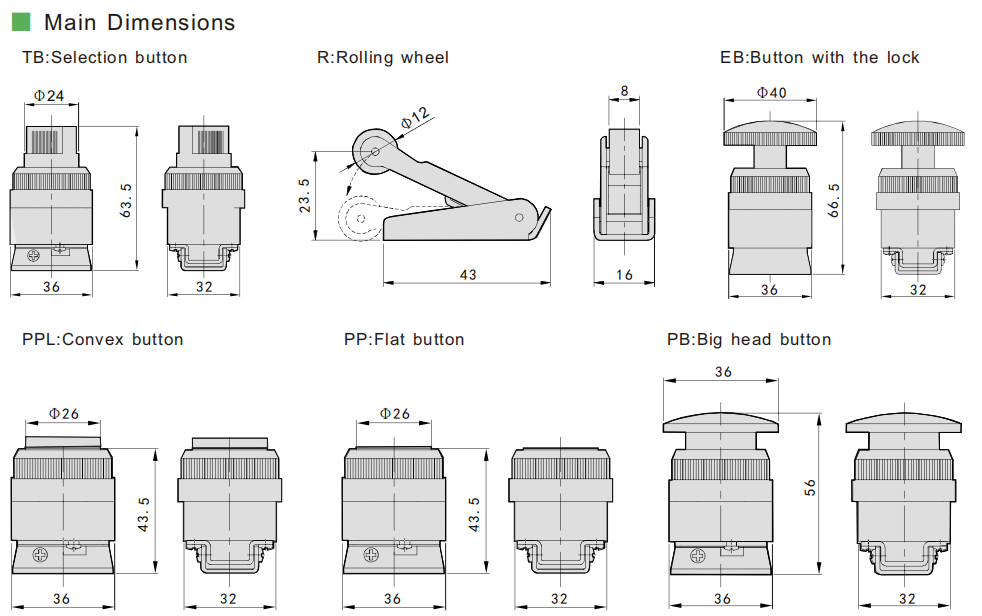

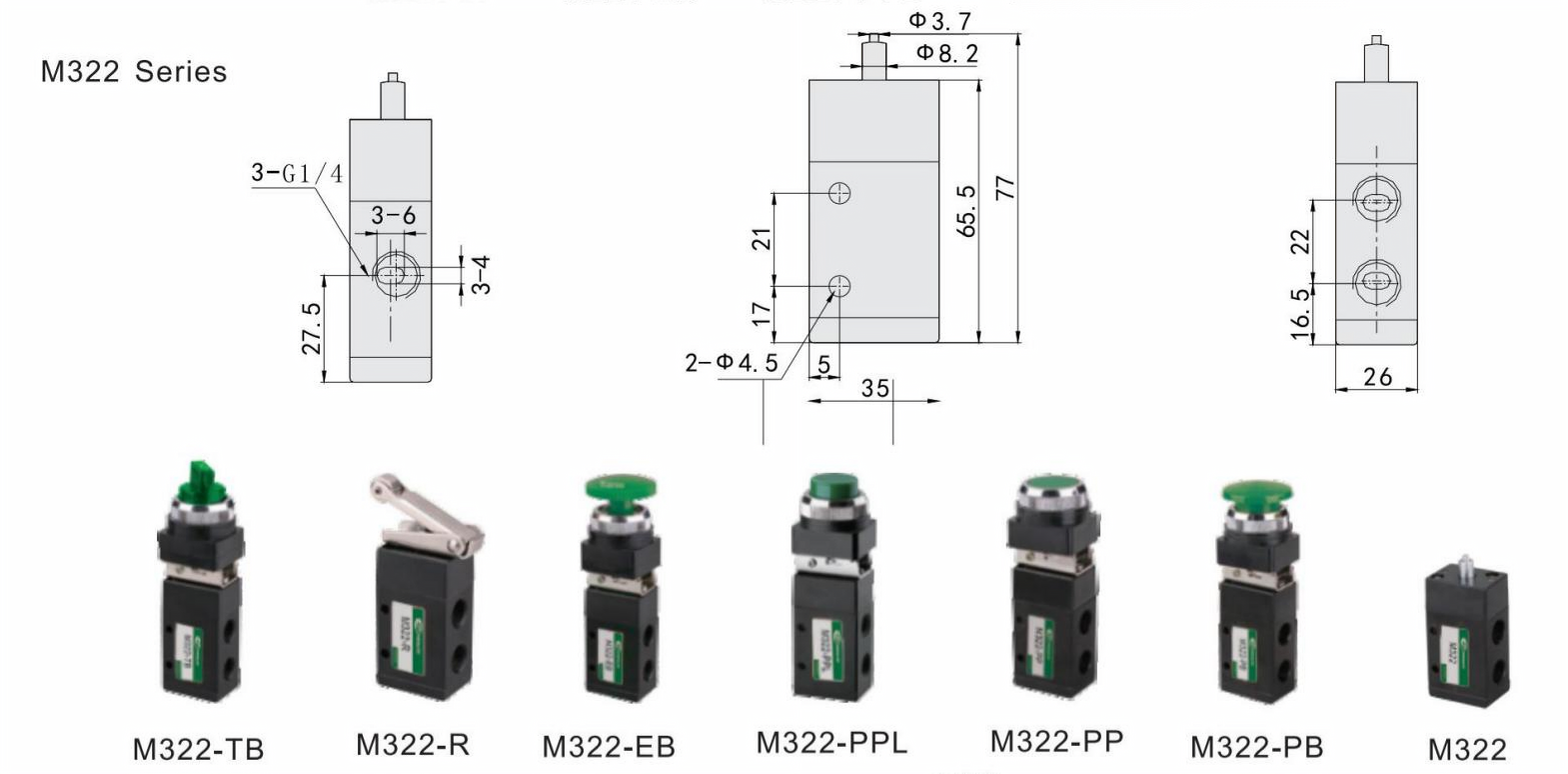

Main Dimensions


Catalogue PDF
