CQM Series Guide Rod Type Compact Cylinder

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button

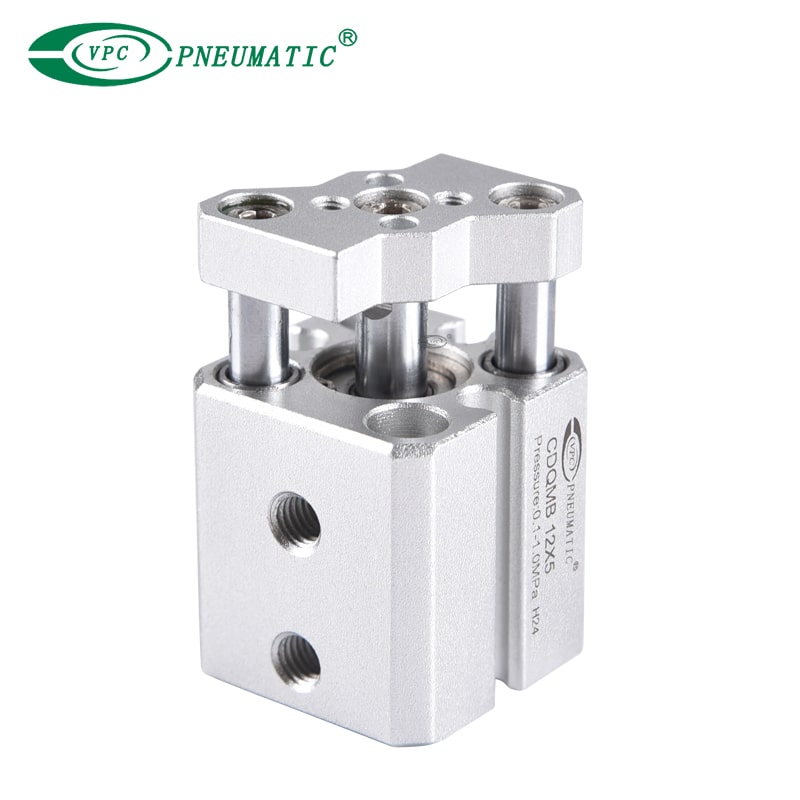

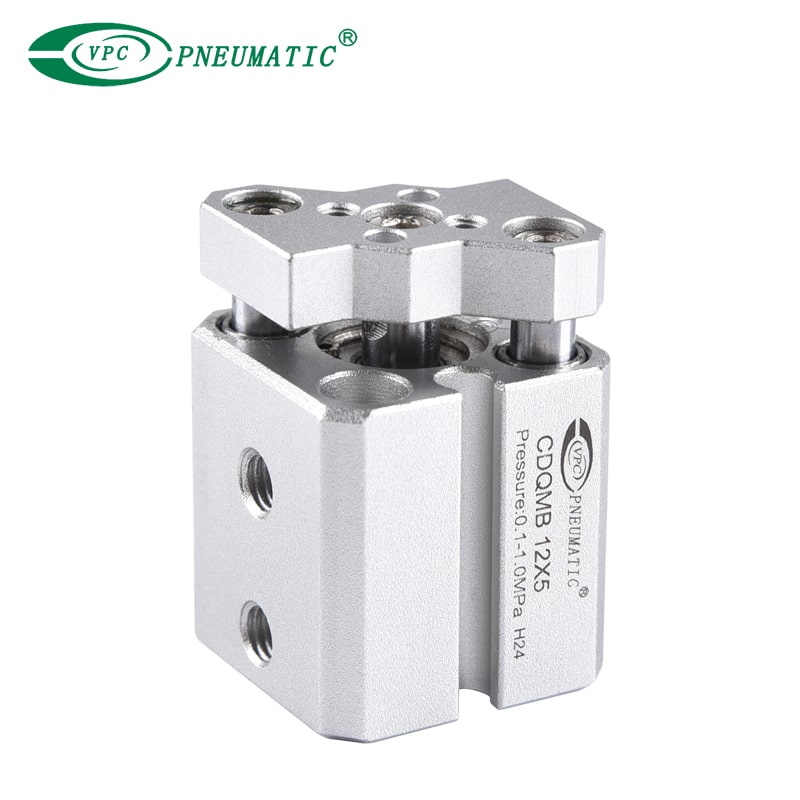

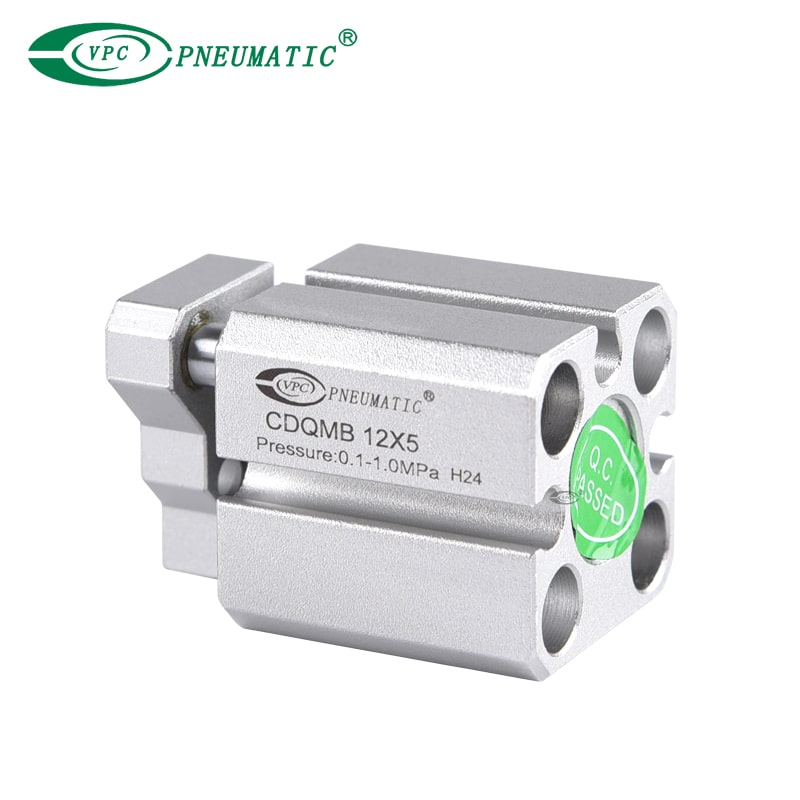

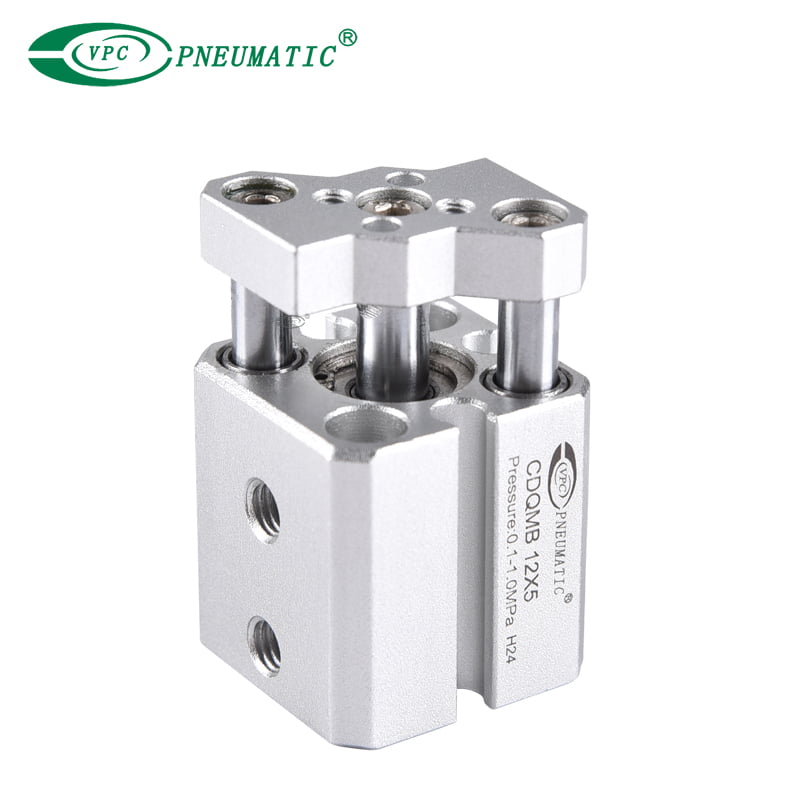

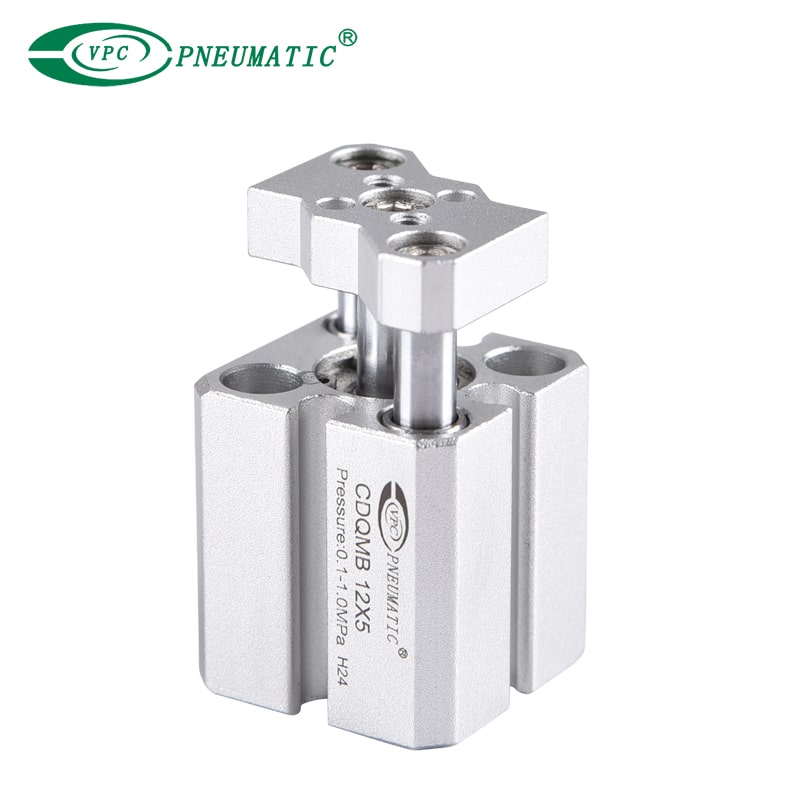

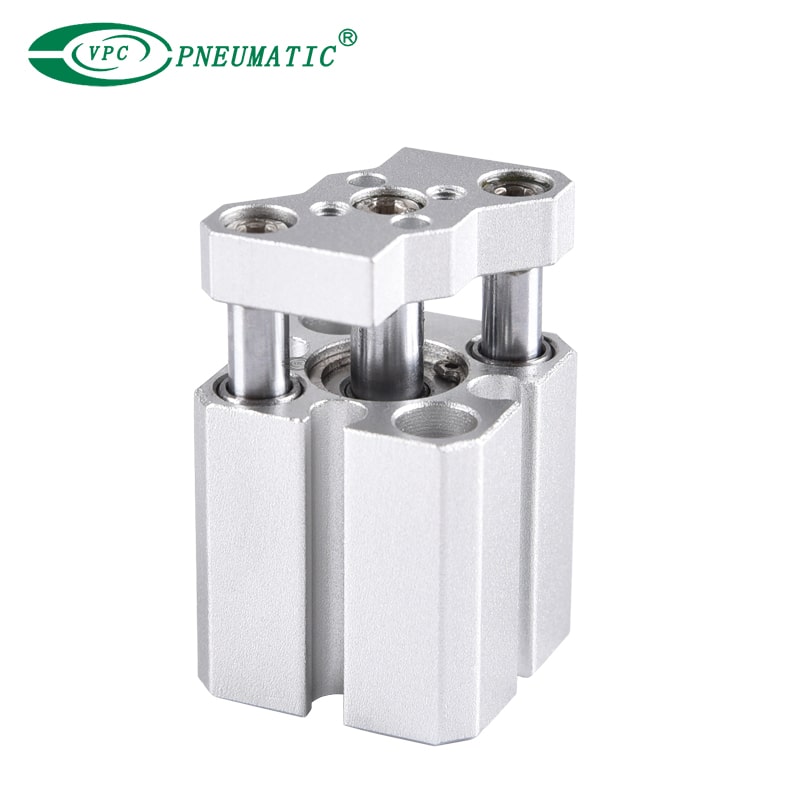

CQMB compact cylinder features ±0.2° non-rotating accuracy, high load capacity, various bore sizes, direct mounting, and flexible stroke lengths, ideal for precise automation and material handling. Compliant with ISO 21287.
  • CDQMB 12X5

  • VPC Pneumatic

Bore size ranges:
Stroke ranges:
Thread type:
Availability:

Product Description

 Product Feature

1. Non-rotating Accuracy: It offers non-rotating accuracy of ±0.2°, allowing for precise positioning without significant load interference, which is essential in applications requiring exact movements.

2. Load Capacity: The cylinder has a lateral load resistance that is 2 to 4 times greater compared to standard compact cylinders, significantly enhancing its robustness for heavier applications.

3. Bore Sizes: Available in a variety of bore sizes, including 12, 16, 20, 25, 32, 40, 50, 63, 80, and 100 mm, making it versatile for various operational capacities and spatial constraints.

4. Direct Mounting: The design incorporates a guide rod and plate that permits direct mounting of components, streamlining assembly and reducing setup times.

5. Compatible Mounting Dimensions: It shares mounting dimensions with the CQS and CQ2 series, facilitating replacement and integration into existing systems without the need for additional modifications.

6. Standard Stroke Lengths: Stroke lengths range from 5 to 100 mm, providing flexibility in motion control across different applications.


Product Specifications

Bore size (mm)121620253240506380100
ModelPneumatic (non-lube) type
ActionDouble acting, Single rod
Working mediumAir
Proof pressure1.5 MPa
Max. Working pressure1.0 MPa
Mini. Working pressure0.12 MPa0.1 MPa
Working temperatureWithout auto switch: -10 to 70℃ (No freezing)
With auto switch: -10 to 60℃ (No freezing)
CushionRubber bumper on both ends
Stroke length tolerance+1.0 mm
0
MountingThrough-holes
Piston speed50 to 500 mm/s50 to 300 mm/s

※  For more detailed information please contact us.
