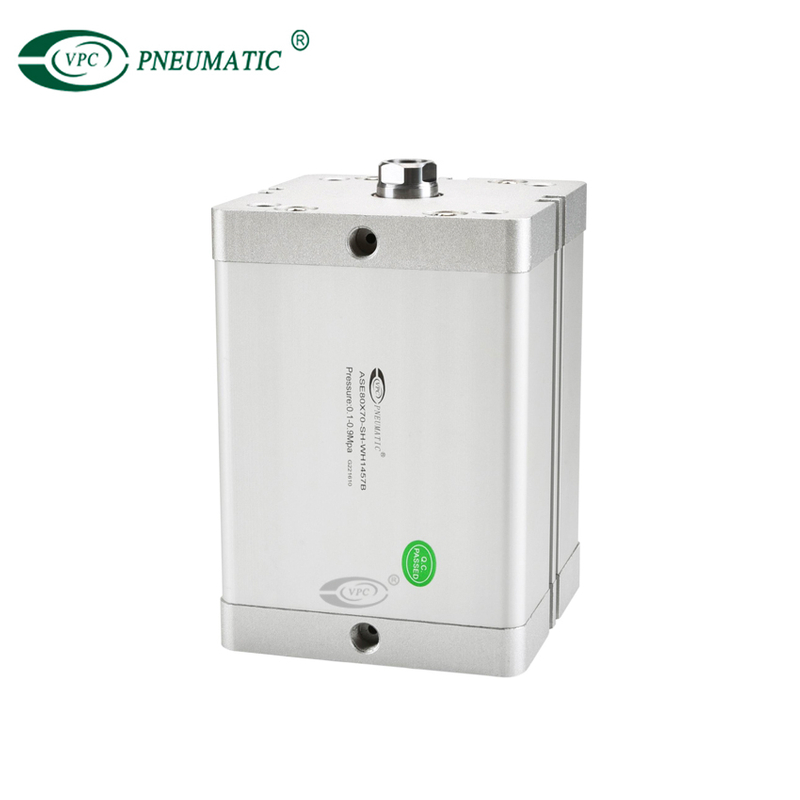

Compact actuators are more space efficient, one-third the length of an equivalent ISO profile cylinder. The newest ASE is ISO 21287 standard and saves 50% space in installation compared to ISO 15552 standard cylinders. Accepts standard reed switch. Replacement for thin profile cylinders of the ADN series.
  • ASE80-70-SH-WH

  • VPC Pneumatic

Body material:
Bore:
Stroke range:
Quality warranty:
Availability:

Product Description

Product Feature

1. In accordance with ISO21287 standard, the mounting size is vogue.

2. The cylinder body connects with the threads of the front and back cover, forming high strength and convenient maintenance.

3. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.

4. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation.

5. Compact structure can effectively save fifty percent installation space with ISO15552 standard cylinder.

6. There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.

7. Bumper is available and it can availably absorb excrescent energy.

8.Installing accessories with various specifications is optional.


 Symbol

single acting cylinder compact cylinder

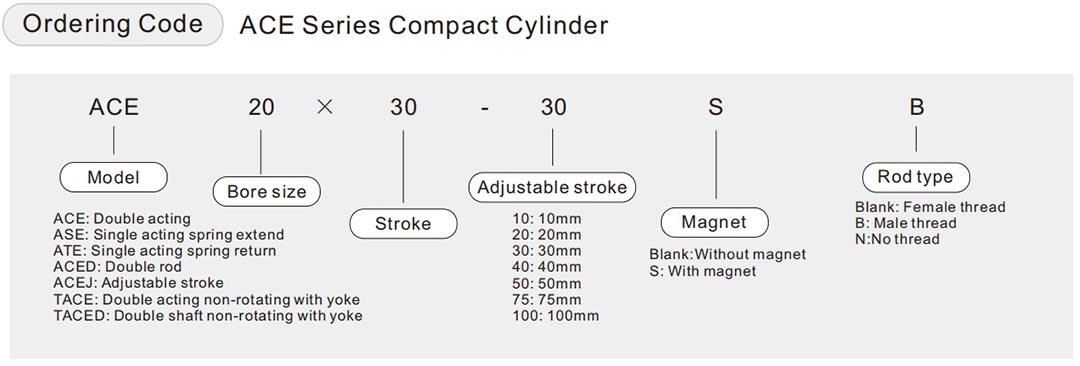

※Standard thread is blank here.


Inner structure and material of major parts

single acting air cylinder

Product Specifications

Specifications

Bore(mm)121620253240506380100125
Working mediumClean air(40um Filteration)
Acting typeDouble acting
Single acting-Push type, Single acting-Pull type
PressureDouble acting: 0.1 to 1.0Mpa (14 to 145psi)
Single acting: 0.2 to 1.0Mpa (28 to 145psi)
Guaranteed pressure1.5Mpa (215psi)
Speed rangeDouble acting: 30 to 500mm/s        Single acting: 50 to 500mm/s
Tolerance of strokeStroke≤100+1.0   Stroke>100+1.5
Cushion typeBumper
Port sizeM5X0.8G1/8G1/4

Stroke

Bore size(mm)Standard stroke(mm)Max. standard stroke
Common typeDouble acting125 10 15 20 25 30 35 40 45 5050
165 10 15 20 25 30 35 40 45 50 55 60 70 7575
205 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100100
255 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150150
32 405 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200200
50 635 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250250
80 100 1255 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 275 300300
Single acting125 1010
16~1005 10 15 20 2525
Non-rotating yokeDouble acting125 10 15 20 25 30 35 40 45 5050
165 10 15 20 25 30 35 40 45 50 55 60 70 7575
20 255 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100100
32 405 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100100
50 635 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100100
80 1005 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100100

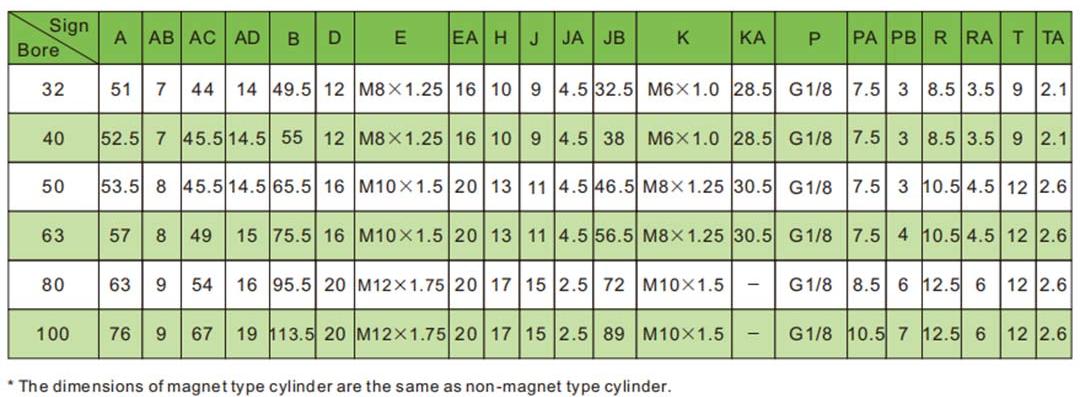

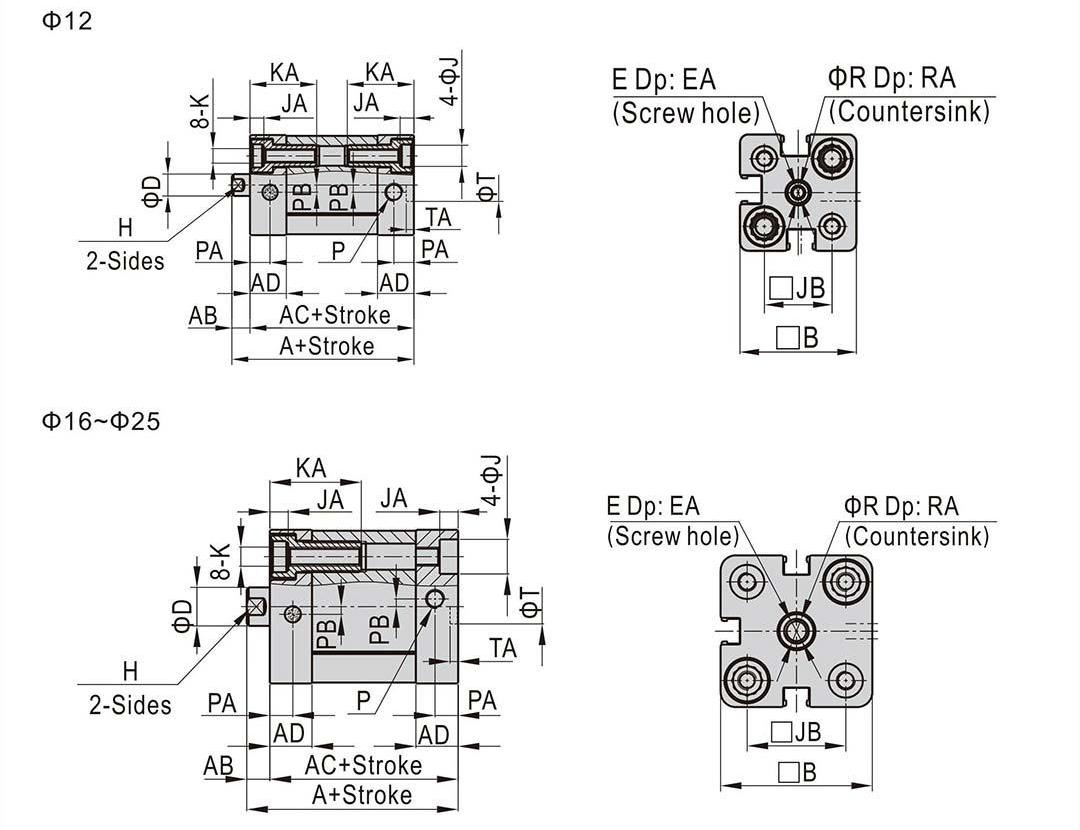

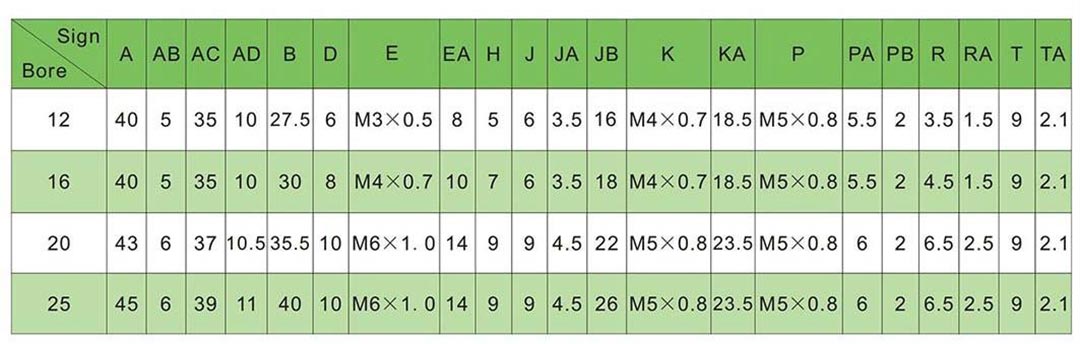

Main Dimensions

 Main Dimensions

air cylinder single acting spring returnsingle acting spring return

single air cylinder

single acting piston

pneumatic piston

Product FAQ

Q1: How do I increase the pressure in my pneumatic cylinder?

A: Another way to increase or decrease the forces generated by the cylinder is to choose a cylinder with either a more significant (Greater force) or smaller (Less force) diameter. Remember, the larger the diameter, the greater the surface area of the piston, and the greater the pressure.


Q2: How do you adjust air cylinder speed?

A: When the cylinder piston extends, the air behind it is compressed because air can't escape easily. When you tighten the flow control screw, the movement of the piston slows down because air is restricted even further. Controls the speed of a cylinder or restricts air flow. Simply turn the needle valve to adjust air speed.


Q3: How much force can a pneumatic cylinder produce?

A: The air cylinder theory force unit is N, such as 32mm bore at 0.1Mpa working push force is 80.4N. The chart is derived from the calculation formula of the theory force for reference only.

pneumatic cylinder force table

pneumatic cylinder force calculator


Q4: Do you sell pneumatic cylinder repair kits?

A: Yes, we sell all types of cylinder repair kits and other accessories. Please get in touch with us if you need any.
