The pneumatic vacuum system is a pneumatic control system that uses compressed air to generate negative pressure (vacuum) to complete functions such as adsorption, transportation, and fixation of parts or objects.


1. Vacuum components and functions

Vacuum components

Function Product model

Vacuum generator

Used to generate negative pressure to provide the required adsorption force for the vacuum suction cup.

Max. vacuum degree: -88Kpa

ZU Series Inline Vacuum Generator

ZH Series Body Ported Type Vacuum Generator

ZL212 Series Vacuum Multi-stage Ejector

VZK Series Integrated Vacuum Generator

Vacuum suction cup

Use the pressure difference generated by the vacuum generator to adhere to the parts. It is the connection point between the machine and the product.

A Series Vacuum Deep Suction Cup

CNC Processing Positioning Suction Cup for Glass

Vacuum filter

Filter the pollutants sucked from the atmosphere by the vacuum suction cup. Ensure that the vacuum generator will not be blocked and work normally. ZFC Series Inline Air Suction Filters

Vacuum pressure switch

Ensure the vacuum pressure to safely hold the workpiece and output electrical signals to the vacuum control system.

ZSE30A(F) Series 2 Colour Display High Precision Digital Pressure Switch

Vacuum regulators

Adjust vacuum pressure.

ITV Series DC24V Regulator Electric Proportional Valve

IRV10/20 Series Vacuum Regulator

* For detailed vacuum component parameters, please refer to the article: What are vacuum components?

itv vba

Vacuum Regulator

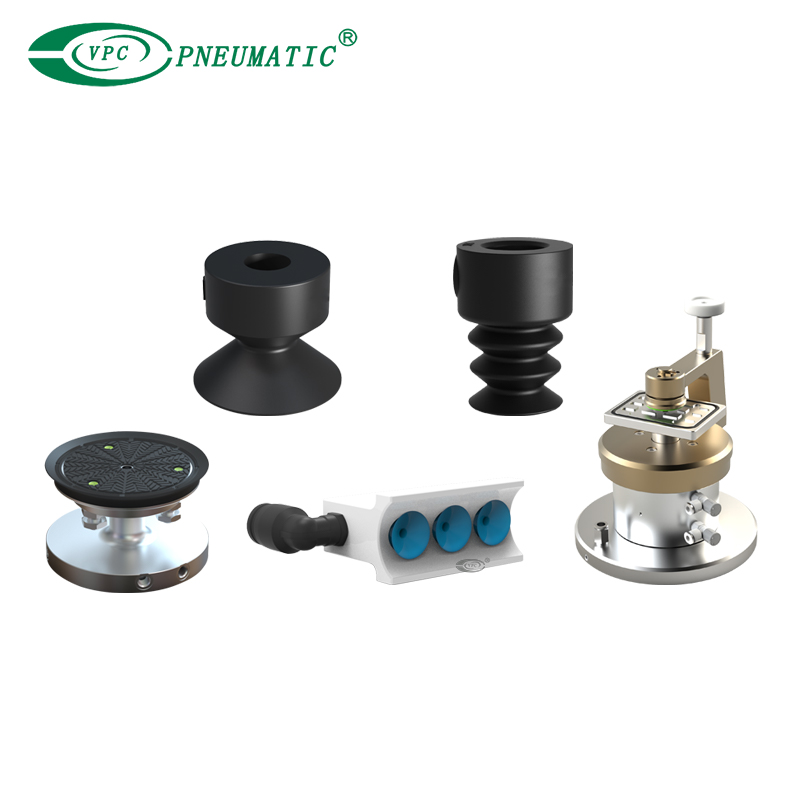

vacuum suction cup

Vacuum Suction Cup

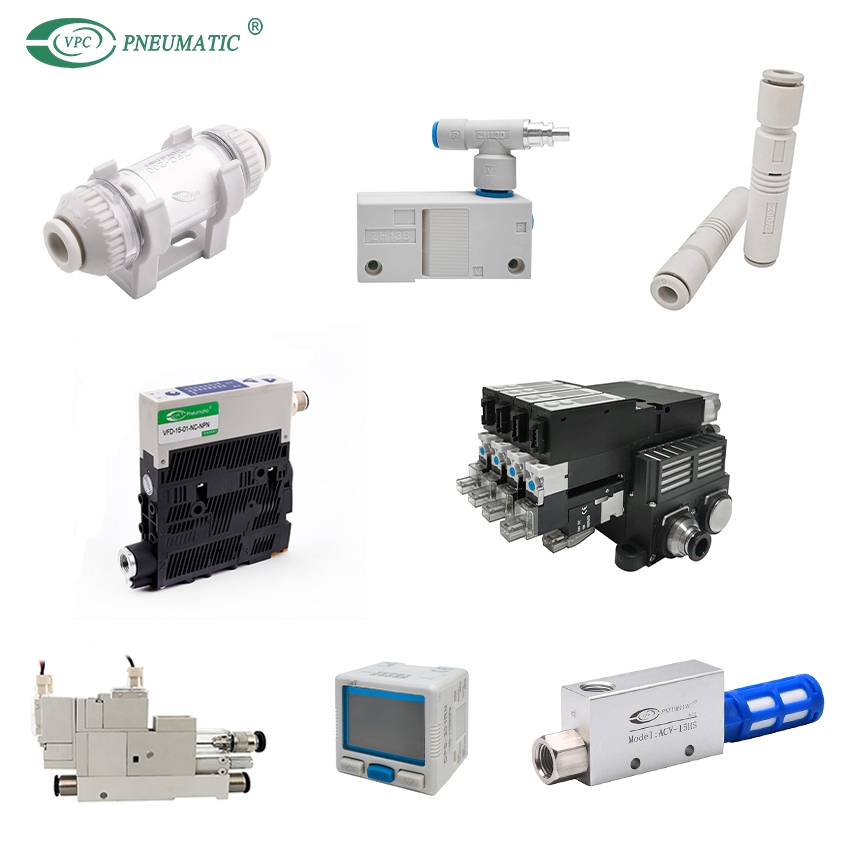

Vacuum Ejector Generator

Vacuum Generator


2. Application of pneumatic vacuum system

Vacuum adsorption handling system: Suitable for any object with a smooth surface. Especially for non-iron, non-metal and non-suitable for clamping objects, such as thin and soft paper, plastic film, aluminum foil, fragile glass and its products, integrated circuits and other micro-precision parts, etc., vacuum adsorption can be used to complete it. It is widely used in the automotive, woodworking, packaging, electronics, sheet metal and other industries.

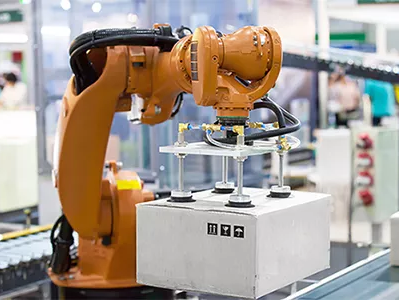

Carton suction handling

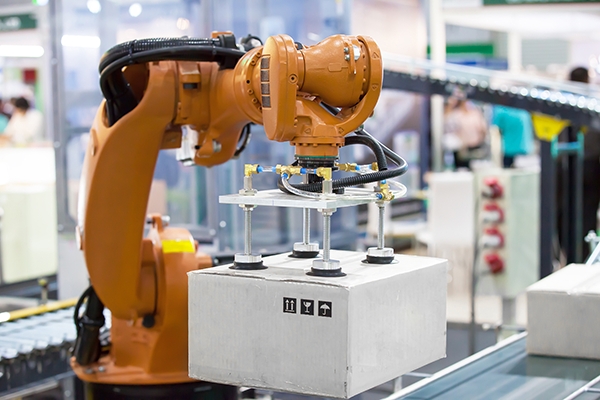

Carton adsorption

Glass adsorption handling

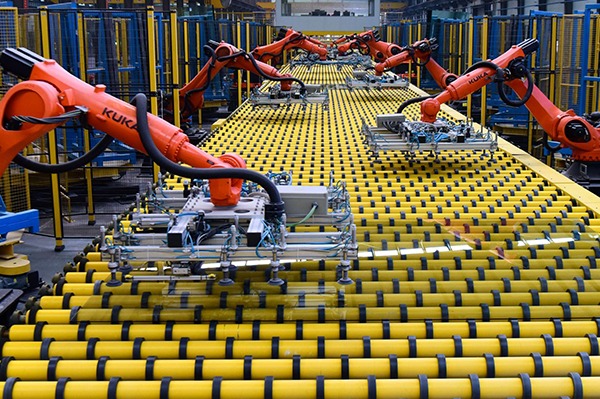

Glass adsorption

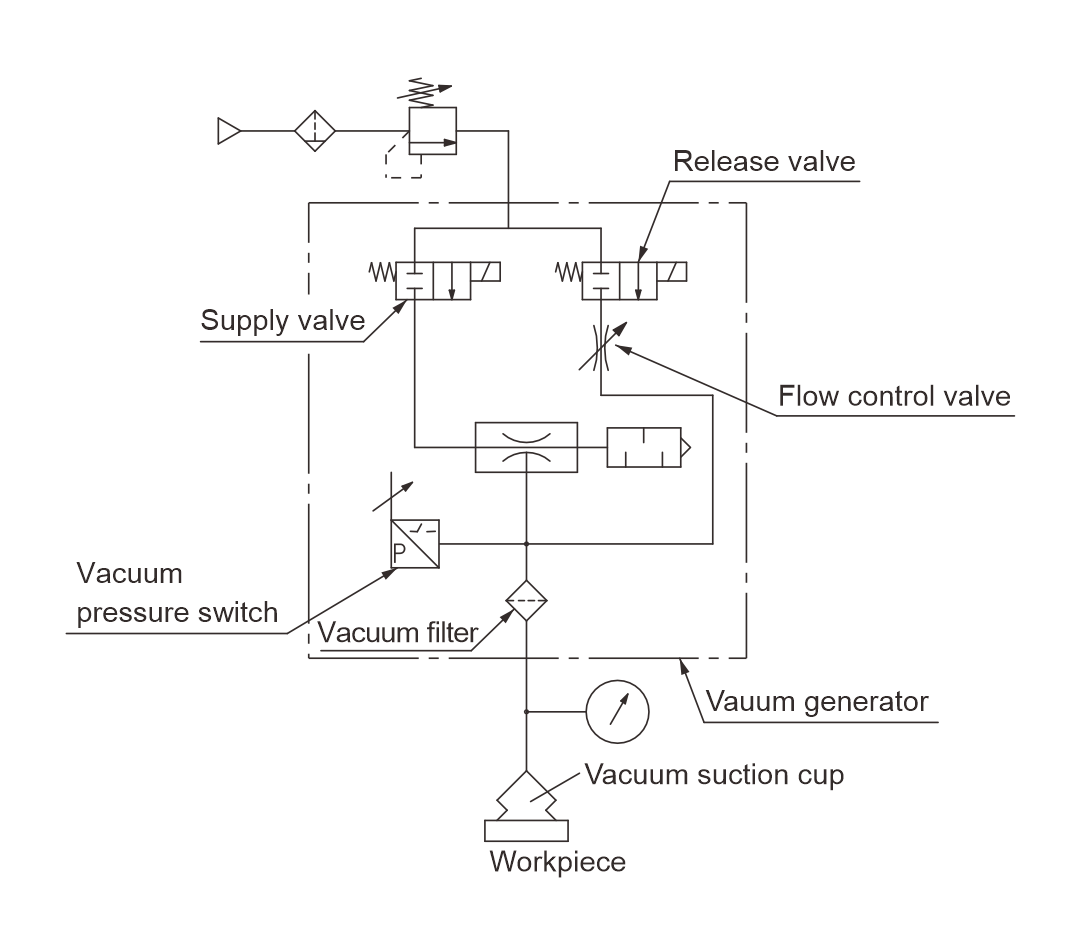

3. Pneumatic vacuum system circuit diagram

pneumatic vacuum system

FAQ


1. Vacuum pump VS vacuum generator

  • A vacuum pump is a device that generates vacuum. The suction port forms negative pressure, and the exhaust port is directly connected to the atmosphere. Max. vacuum degree: -101.3Kpa

  • The vacuum generator is a pneumatic component that uses the flow of compressed air to form a certain vacuum degree. Max. vacuum degree: -88Kpa


2. How to select a vacuum generator?

When selecting a vacuum generator, factors such as maximum suction flow, maximum vacuum degree, and air consumption should be considered. In addition, you should also choose a vacuum generator that can provide a stable vacuum degree based on the total gas consumption of the vacuum cup and the continuous working cycle (working frequency) required by the system.


3. What is a vacuum suction cup?

The vacuum suction cup is a connecting component between the workpiece and the vacuum system. It uses a vacuum pump or vacuum generator to extract the air in the suction cup, forming a vacuum state inside, so that it can be tightly adsorbed on various flat materials under the action of atmospheric pressure.

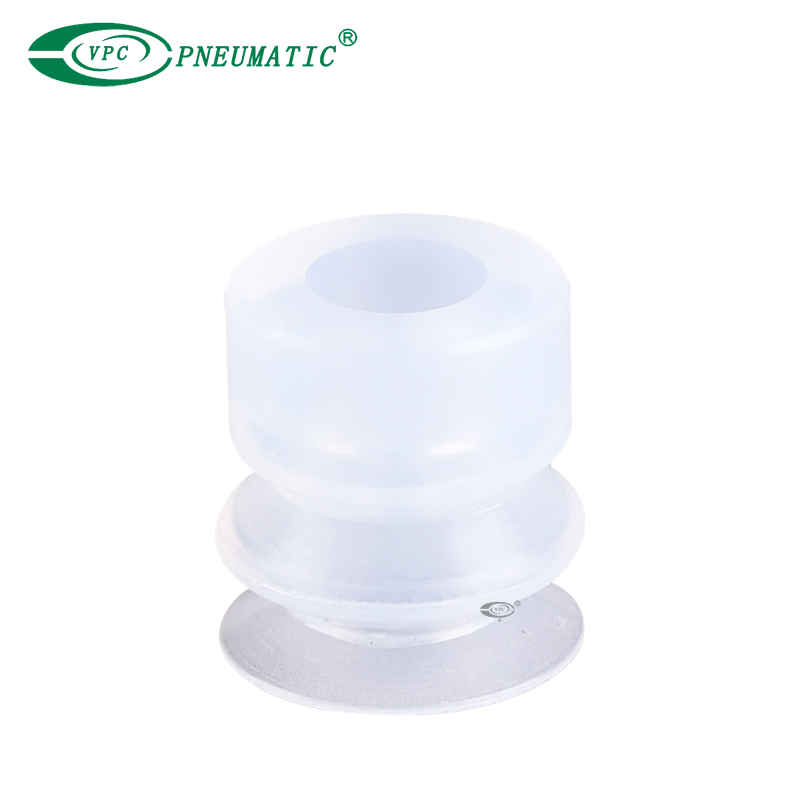

797
industrial vacuum suction cups
glass suction Pad
Vacuum suction cup smc


4. How does the vacuum suction cup work?

Suction principle:

The vacuum suction cup is connected to the vacuum generator through the air pipe, and then contacts the object to be lifted (such as glass, paper, small membrane, etc.), and the vacuum equipment is started to suck, so that negative air pressure is generated inside the suction cup, so that the object to be lifted is firmly sucked, and the object to be lifted can be transported.

Detachment principle:

When the object to be lifted is moved to the destination, the vacuum suction cup is smoothly inflated, so that the negative air pressure in the vacuum suction cup changes to zero air pressure or positive air pressure. The vacuum suction cup automatically separates from the object to be lifted, thereby completing the task of lifting and moving heavy objects.

Thin film adsorption
Carton adsorption


5. How to choose a vacuum suction cup?

① Selection of adsorbents

  • Characteristics of the adsorbent: surface state, air permeability, aversion to static electricity, aversion to copper ions, and whether the shape changes (paper, plastic).

  • Shape of the adsorbent: size of the adsorption surface, flatness (state of the curved surface), shape (cube, sphere, cylinder).

  • Weight of adsorbate

  • Lifting direction of adsorbent: horizontal adsorption or vertical adsorption.

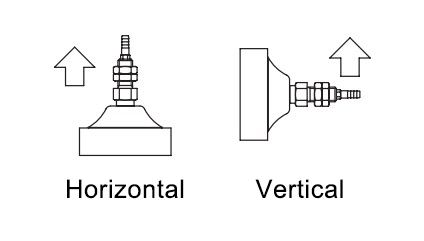

Lifting direction of adsorbent

② Select the vacuum suction cup

  • Calculation of adsorption force: Calculated based on the weight of the workpiece to be carried and the contact area.

F = P X A

F: Adsorption force

P: Vacuum pressure

A: Area of contact surface between suction cup and workpiece

  • Calculation of suction cup diameter: Determined according to the shape and size of the workpiece and the required adsorption force.

  • Suction cup material: Select appropriate material according to usage conditions, fluid used, usage environment, etc.

Vacuum suction cup material

Operating temperature rang (℃)

Adsorbate

NBR
-30-120

General objects.

VQM -60-230

Semiconductors, thin objects, food, finished products.

PU 130-100

Iron plate, thin plate, carton.

FKM -20-250

Medicines

  • Shape of suction cup: Choose the shape of suction cup according to the shape, material and weight of the object to be adsorbed.

Shape of vacuum suction cup

Application

Flat suction cup

Handle workpieces with flat or slightly rough surfaces. Such as metal plates, cartons, glass, etc.

Corrugated suction cup

Suitable for irregular surfaces or surfaces with deformed materials. Such as handling workpieces such as battery cells and metal plates.

Long roung suction cup Carrying narrow and long workpieces with small gripping surface, such as wooden strips, window frames, geometric workpieces, etc.
Deep suction cup

The suction cup has a large depth. It is suitable for workpieces with a certain surface curvature, such as fruits, glass balls and other ball objects.

Use multiple suction cups to hold workpieces with holes
Vacuum suction cup for thin film adsorption
Film packaging

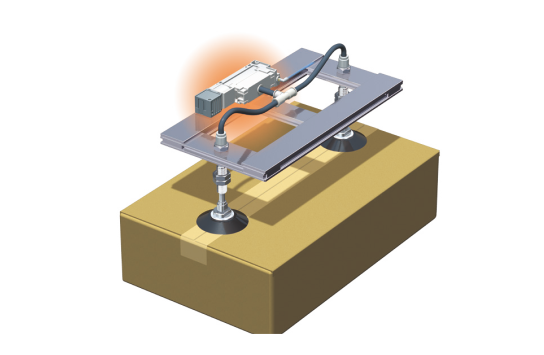

Carton handling


The above is an introduction to pneumatic vacuum systems and how to choose vacuum components that are suitable for your vacuum system circuit. If you have any questions in designing vacuum system circuits, you can contact VPC Pneumatic. Your consultation is welcome!
