What are vacuum components?

◆ VPC Official Spanish Language Website

Vacuum components are the core components that realize the adsorption, handling and positioning of objects in vacuum systems.

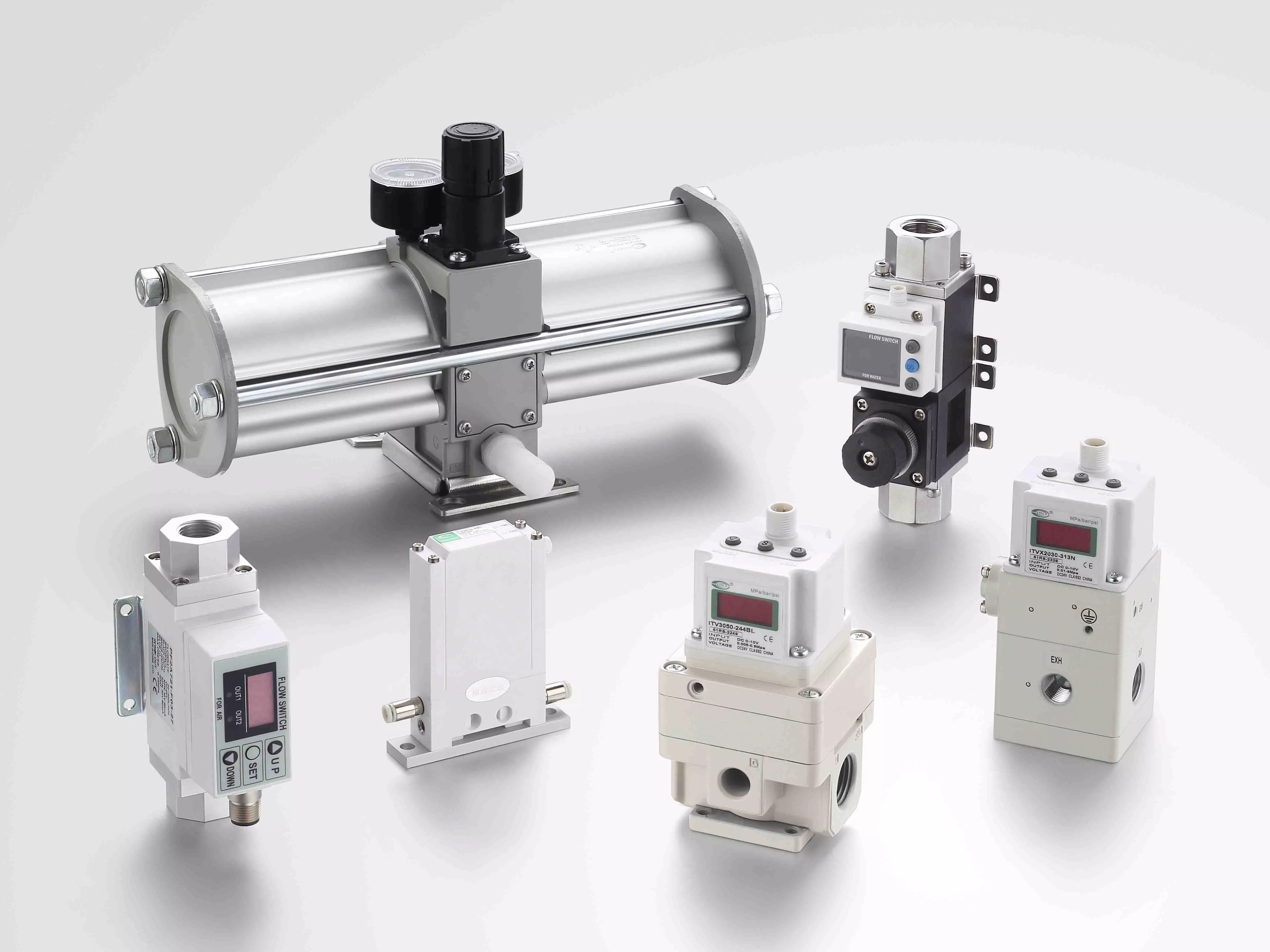

Components for vacuum systems

• Vacuum Regulators

• Vacuum Generators/Ejectors

• Vacuum Suction Cups

• Vacuum Filters

• Vacuum Sensors

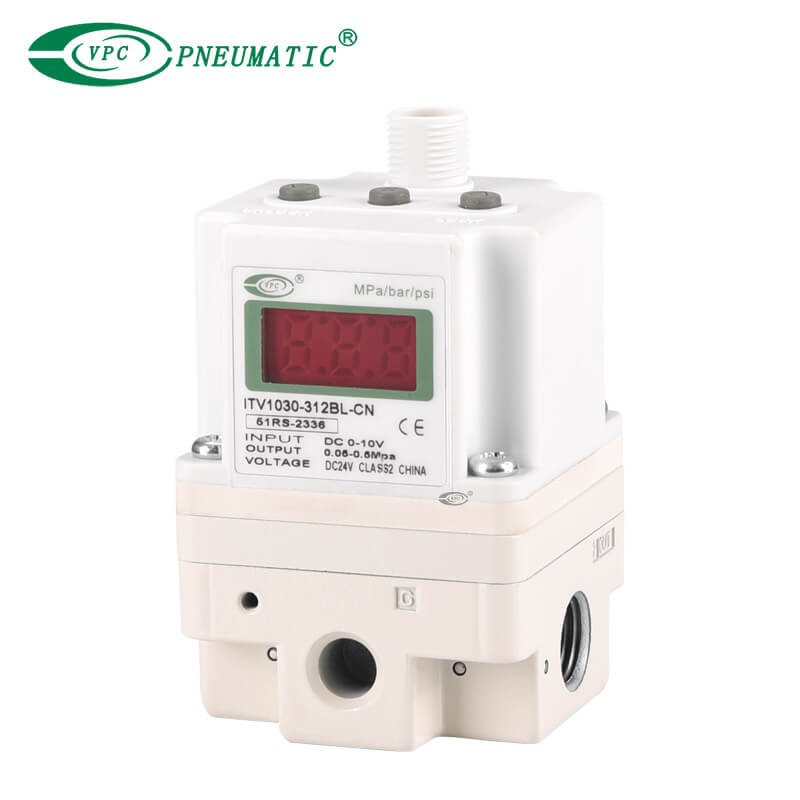

1. ITV Series Electro-Pneumatic Regulators

The ITV electro-pneumatic regulators controls the air pressure through an electric signal and is used in situations where continuous or stepless adjustment of the air pressure is required. It can also achieve remote control and program control.

Conventional electric pneumatic regulator can be divided into ITV1000 Series, ITV2000 Series, and ITV3000 Series. Such as ITV1050, ITV1030, ITV2030, ITV2050, ITV3050 and other different models.

In addition, there are ITVX2000 high pressure electro pneumatic valve, ITV2090/2091 vacuum electro pneumatic valve, and ITV009 compact vacuum electrical proportional valves.

Key performance parameters

ITV1000/2000/3000 Electro-Pneumatic Regulator	ITVX2000 High Pressure Electro-Pneumatic Regulator	ITV2090/2091 Electronic Vacuum Regulator	ITV009 Compact Electro-Pneumatic Regulator
Repeatability：±0.5% F.S. or less	Max. Supply pressure: 5.0 MPa	Min. supply vacuum pressure:  Set pressure -13.3 kPa	Repeatability: ±0.5% F.S. or less
Sensitivity：0.2% F.S. or less	Max.flow rate: 3000 L/min(ANR)	Max. supply vacuum pressure: -101kPa	High-speed response time:  0.1 s (Without load)
Working temperature： 0 to 50℃ (No condensation)	Set pressure range: 0.01 to 3.0 MPa	Set pressure range: -1.3 to -80kPa	High stability — Sensitivity:  0.2% F.S. or less
Pressure range: -80 kPa to 0.9 MPa	Working medium: Air, N₂, O₂, Ar	Available port size: 1/4	Built-in one-touch fitting
Available port sizes: 1/4, 3/8 , 1/2	Working temperature： 0 to 50℃ (No condensation)	Mounting bracket option	Compact and lightweight

2. VBA Booster Regulator

VBA booster regulator is a control valve used to increase system pressure. Its main function is to boost the low-pressure fluid (usually gas or liquid) in the system to a higher pressure.It is often used in conjunction with a VBAT air tank.

Key performance parameters

Pressure increase ratio	Twice
Pressure adjustment mechanism	Knob-operated with relief mechanism
	Air-operated
Set pressure range	0.2-2.0 MPa
Max.flow rate	230-1900 L/min(ANR)
Working temperature	2 to 50 ℃ (No freezing)

*For detailed installation instructions of the pneumatic booster regulator and air tank, please refer to the article: How to install booster regulator?

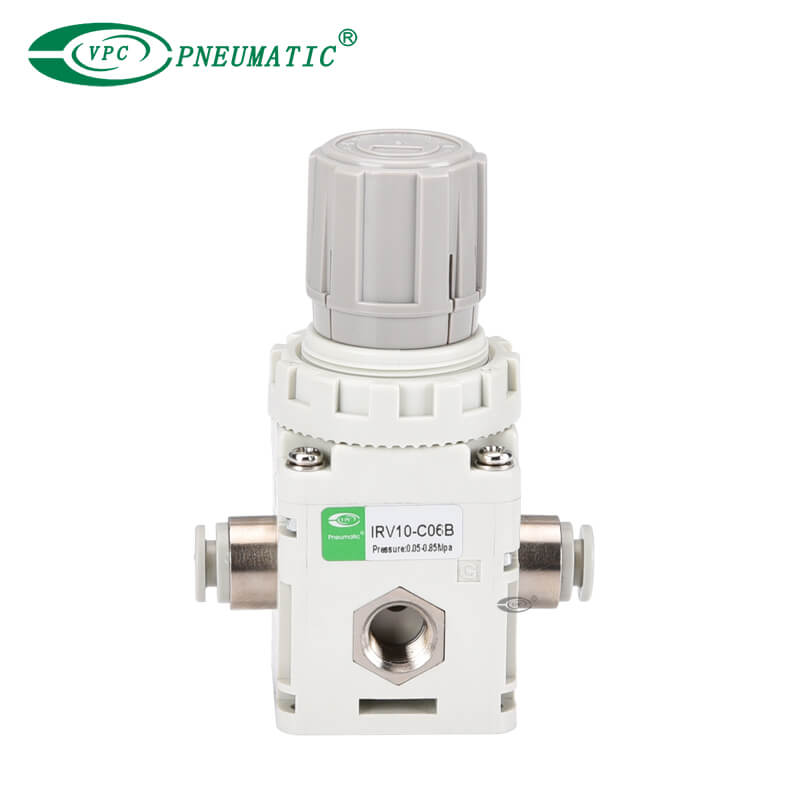

3. IRV10/20 Series Vacuum Regulator

IRV10/20 series vacuum regulator can regulate and control the air pressure or vacuum in the system and stabilize the output.

• Small size, wide application range.

• Available thread sizes include Rc, NPT and G.

• Provides single-sided connection for easy installation.

• With one-touch connector. Available in elbow or straight connector styles.

Key performance parameters

Model	IRV10	IRV20
Working temperature	5 to 60℃
Set pressure range	-100 to -1.3 kPa
Proof pressure	100 kPa (Except with pressure gauge)
Atmospheric intake consumption	0.6 L/min (ANR) or less
Connection tubing O.D.	Ф6, Ф8	Ф6, Ф8, Ф10

4. Vacuum Generator

The vacuum generator uses compressed air to generate negative pressure to achieve fast and stable vacuum adsorption.

It is usually used in conjunction with a vacuum suction cup to perform operations such as adsorption and transportation of various materials. Especially suitable for adsorbing fragile, soft, thin non-iron, non-metallic materials or spherical objects.

Key performance parameters

Model	Working temperature(℃）	Nozzle diameter  (mm)	Max.suction flow rate (L/min ANR)	Air consumption (L/min ANR)	Max.vacuum pressure (kPa)
ZL212 Vacuum Multi-stage Ejector	5 to 50℃	1.2～1.9×2	100～600	57～270	-84
VZK Integrated Vacuum Generator	5 to 50 ℃	0.7～1.5	29～67	24～90	-92
ZU Inline Vacuum Generator	5 to 60℃	0.5～0.7	7～16	14～29	-85 (S) / -48 (L)
ZH Box Type Vacuum Generator	5 to 50 ℃	0.5～2.0	5～70	13～78	-85(S) / -48(L)
ZH Body Ported Type Vacuum Generator	5 to 50 ℃	0.5～2.0	5～135	13～185	-85(S) / -53(L)
ZH Vacuum Ejectors, High Flow	-5 to 80 ℃  (with no freezing or condensation)	13, 21.6, 30, 42 (Passage diameter)	6～90	13～196	Maximum vacuum pressure varies by model

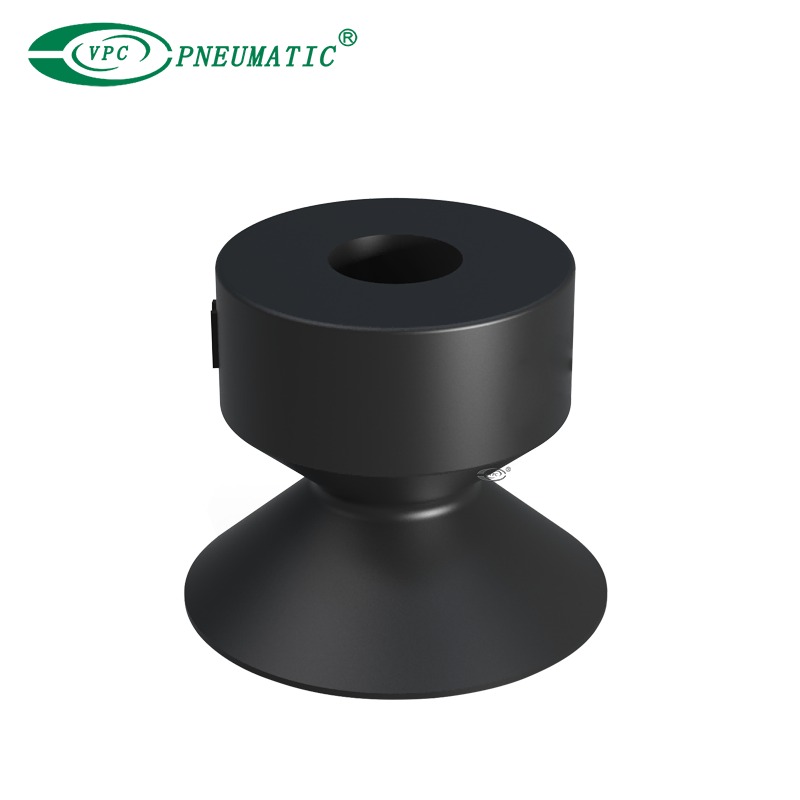

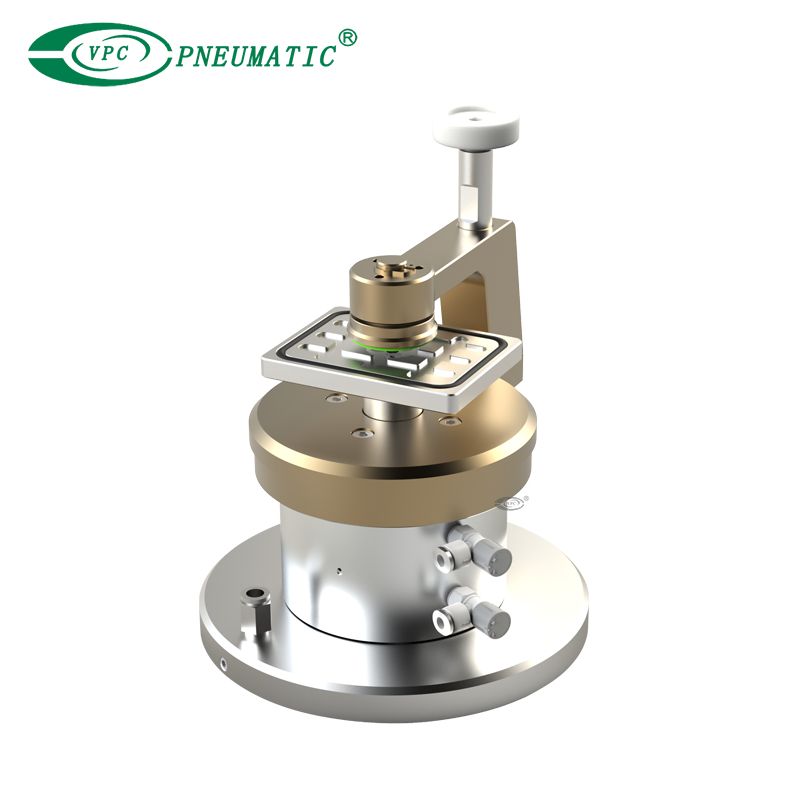

5. Vacuum suction cup

What is vacuum suction cup?

The vacuum suction cup uses a vacuum generator to generate a vacuum pressure difference, and then uses the vacuum suction cup to absorb, grab and move objects.

Connect the vacuum suction cup to the vacuum generator, and when the air in the suction cup is pumped out to form a vacuum state, the external atmospheric pressure will press the suction cup tightly against the surface of the object, generating adsorption force, so that various objects can be lifted or fixed.

6. ZFC Series Inline Air Suction Filters

The ZFC vacuum filter is used to filter foreign matter such as workpieces and dust in the environment sucked into the suction cup. It is usually used in conjunction with vacuum components such as vacuum generators and vacuum suction cups in vacuum suction handling systems.

① Operating pressure range: -100kPa - 1.0MPa

② Working temperature: 0 to 60°C

③ Can be used for both positive pressure and vacuum pressure.

• Flow rate (Positive pressure): 15-650 L/min

• Flow rate (Vacuum pressure): 2-100 L/min

④ Filtration: 5 (Filtration efficiency 95%)

⑤ With one touch fitting

• Metric size:∅2,∅3.2,∅4, ∅6, ∅8,∅10,∅12

• Inch size: ∅1/8" , ∅5/32",∅1/4" , ∅5/16",∅3/8"

⑥ Anti-rotation structure: prevents parts from flying due to looseness when using positive pressure.

7. ZSE/ISE30 & ZSE40/ISE40 Digital Pressure Switch

Vacuum sensors are used to measure various parameters such as pressure, flow rate and vacuum in order to accurately monitor the performance of the system.

Key performance parameters

Model	ZSE30A(F)/ISE30A	ZSE40A(F)/ISE40A
Working medium	Air, Non-corrosive gas / Non-flammable gas
Power supply voltage	DC12 to 24 V±10%, Ripple (p-p) 10% or less
Repeatability	±0.2% F.S. ±1 digit
Display accuracy	±2% F.S.±1 digit (Ambient temperature of 25 ±3℃)
Working  temperature range	Operation: 0 to 50°C,  Storage:-10 to 60°C (No condensation or freezing)	Operation: -5 to 50 °C,  Storage: -10 to  60 °C (No condensation or freezing)
Enclosure	IP40	IP65

8.PSE540 Series Compact Remote Analog Vacuum Sensor

9.PSE560 Series Pressure Sensor For General Fluids

Key performance parameters

Model	PSE540	PSE560 (Positive pressure)
Rated pressure range	0 to 1MPa
Proof pressure	1.5MPa
Working medium	Air/Non-corrosive gas/Non-flammable gas	Liquid or gas that will not corrode or  attack stainless steel 316L
Current consumption	15mA or less	10mA or less
Linearity	±0.7% F.S. or less	±0.5% F.S.
Operating temperature	Operating: 0 to 50℃,  Stored: -20 to 70℃ (No freezing or condensation)	Operating: 10 to 60℃,  Stored: -20 to 70℃ (No freezing or condensation)

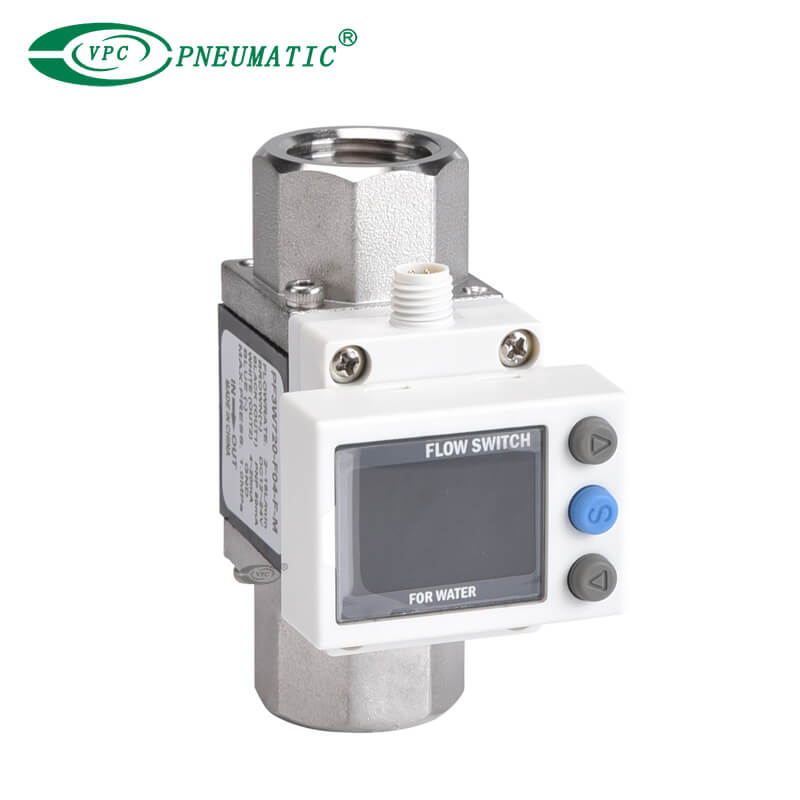

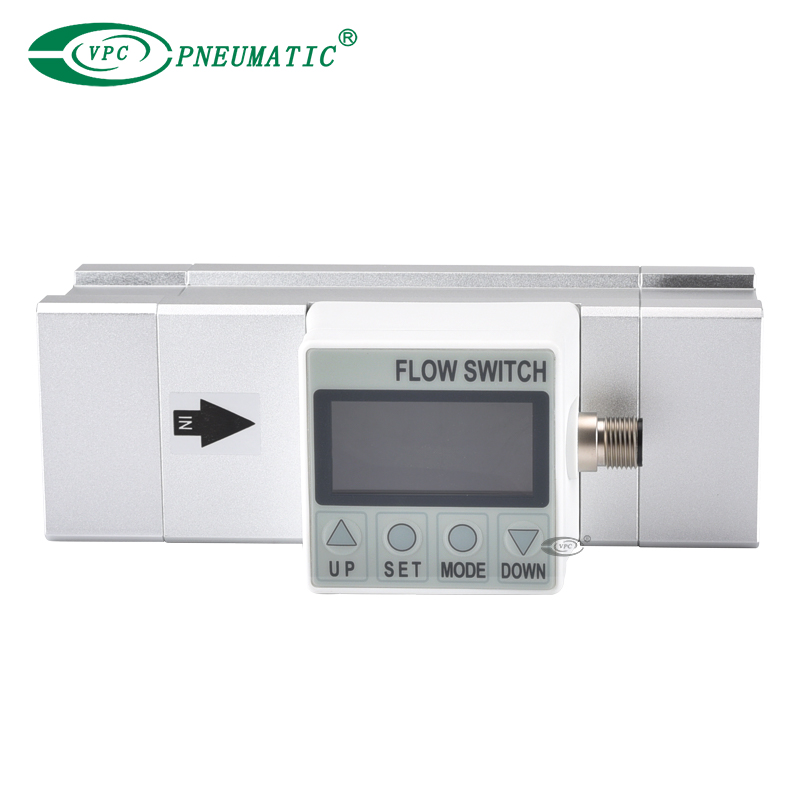

10. PF3W Series 3-Color Display Digital Flow Switch for Water

• 3-color/2-screen display

• Double monitoring of temperature and flow rate

• Rotatable display: Counterclockwise 90°, Clockwise 225°

• Support analog voltage and analog current output

• Various pipe port size：3/8, 1/2, 1/4, 3/4,1 1/4, 1 1/2

Key performance parameters

Working medium	Water and ethylene glycol aqueous solution (with viscosity of 3MPa·s [3 cP] or less)
Fluid temperature	0 to 90°C (No freezing or condensation)
Operating pressure	0 to 1MPa
Repeatability	±2% F.S.
Power supply voltage	DC12 to 24 V ±10%
Current consumption	50 mA or less
Enclosure	IP65

The above are the vacuum components used in vacuum systems. If you have any questions about vacuum systems or vacuum components, such as the working principle, specific parameters, application environment, how to choose the appropriate vacuum components for vacuum systems, and how to design vacuum systems, please contact VPC Pneumatic. We will be happy to answer your questions!
