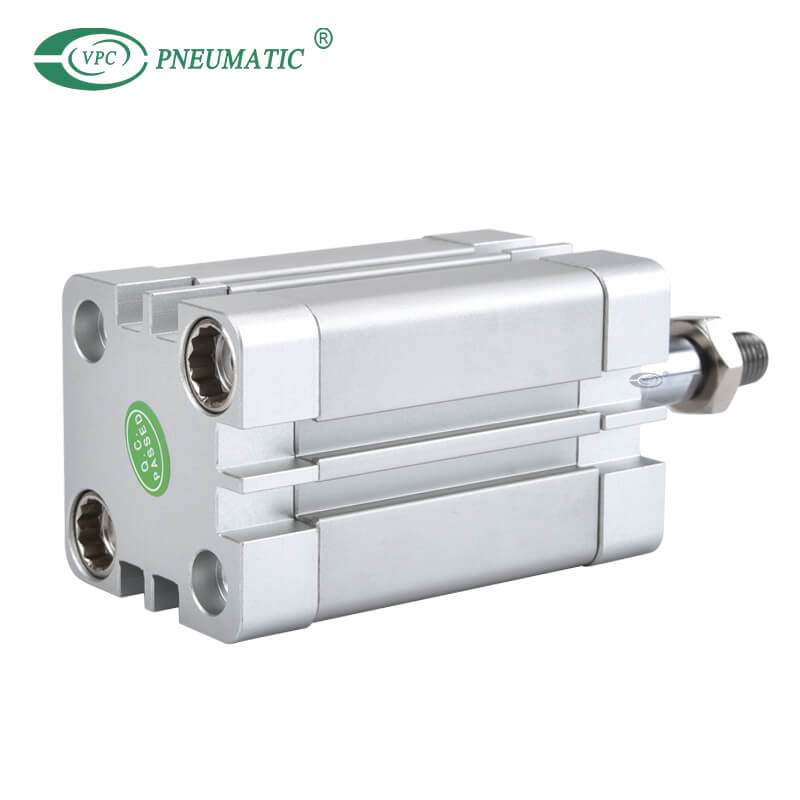

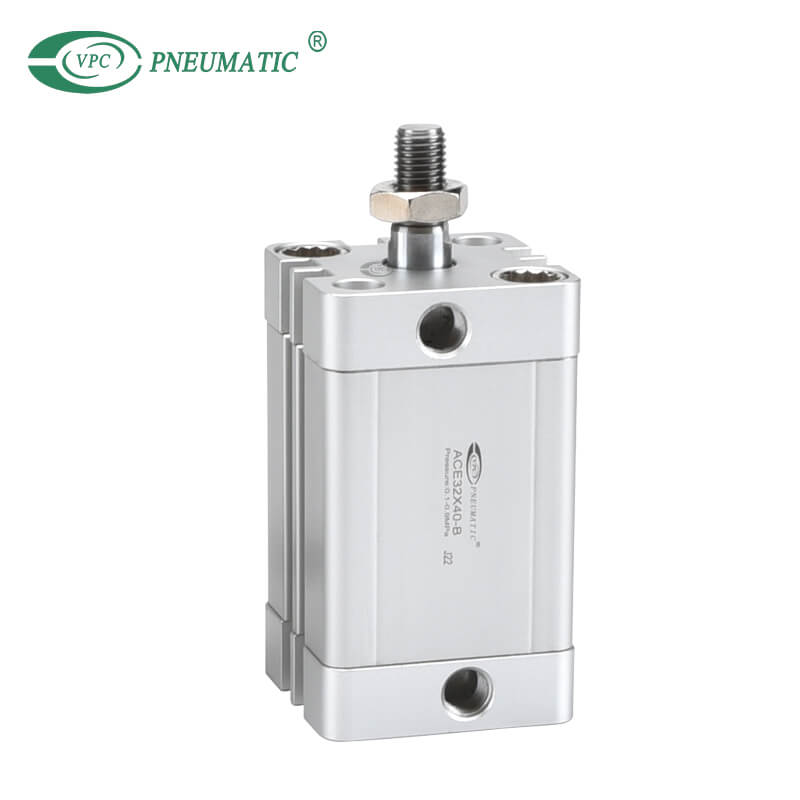

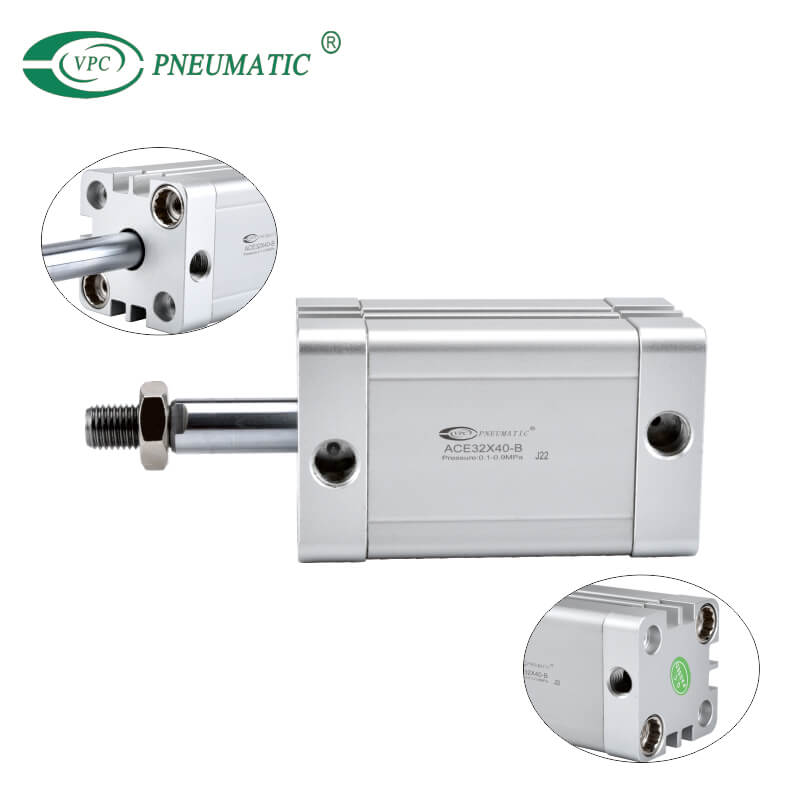

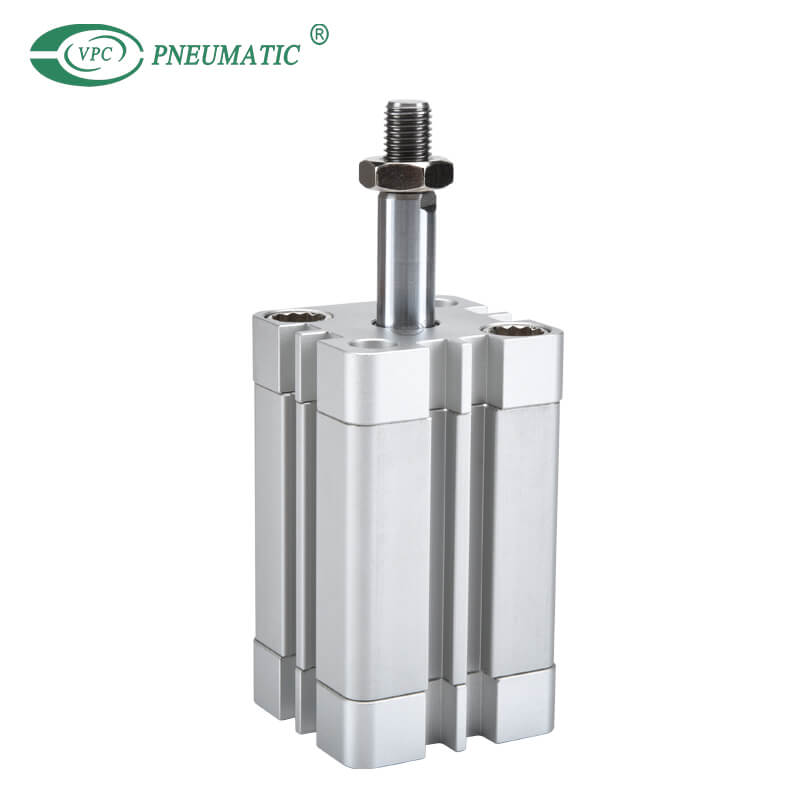

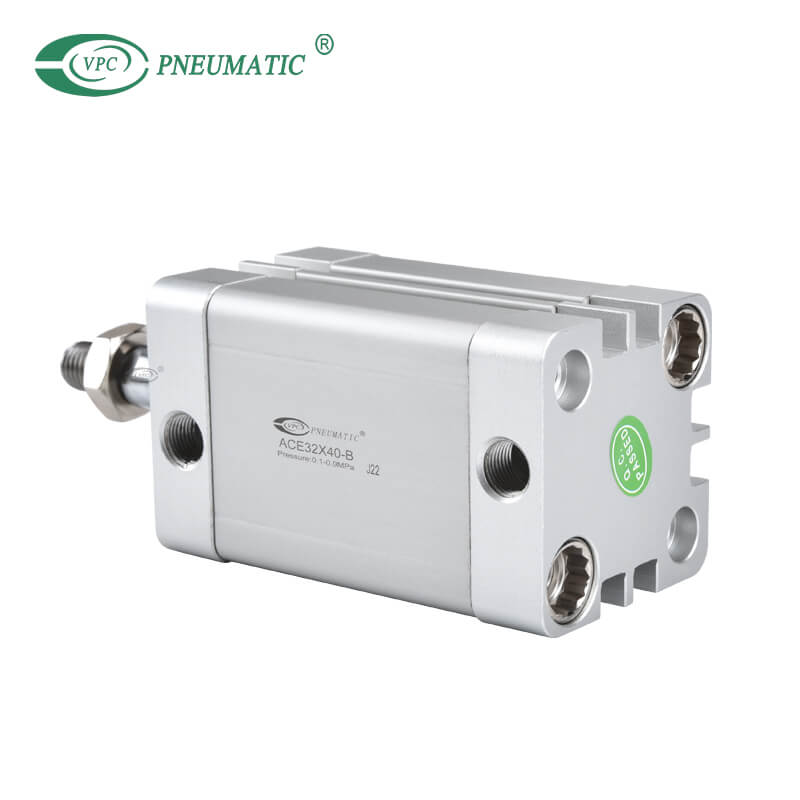

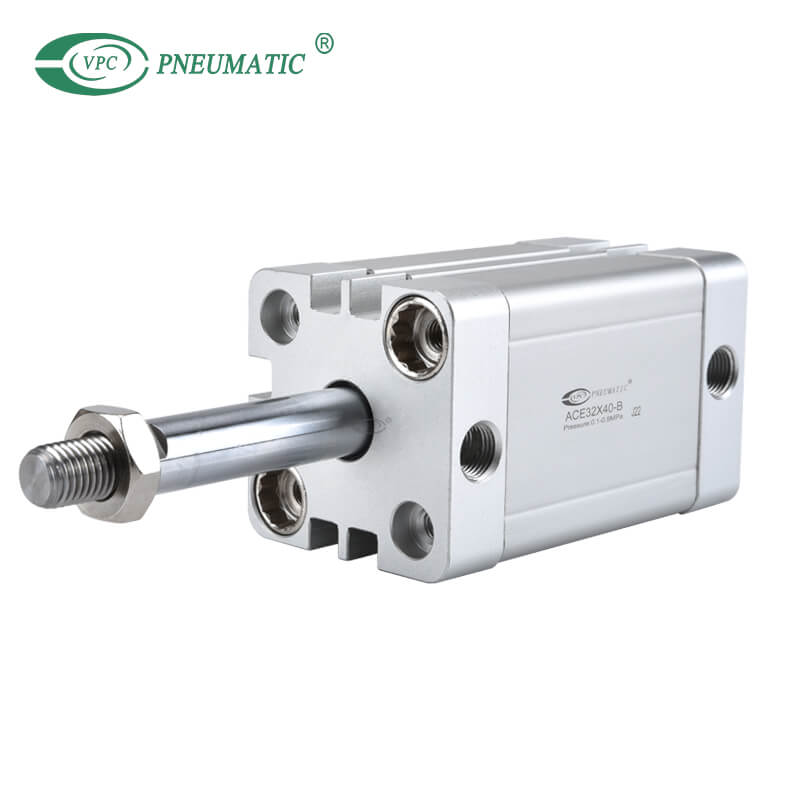

ACE ADN Series Compact Air Cylinder, Single Acting Spring Extend

Compact actuators are more space efficient, one-third the length of an equivalent ISO profile cylinder. The newest ASE is ISO 21287 standard and saves 50% space in installation compared to ISO 15552 standard cylinders. Accepts standard reed switch.

Model:
ACE(ADN) 80x70
Brand:
VPC Pneumatic
Code:
8412310090

Body material:	Aluminum alloy
Bore:	12mm to 125mm
Stroke range:	5mm to 120+mm
Quality warranty:	2 years
Availability:



Inquire Add to Basket

Product Description

■ Product Feature

1. In accordance with ISO21287 standard, the mounting size is vogue.

2. The cylinder body connects with the threads of the front and back cover, forming high strength and convenient maintenance.

3. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.

4. The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation.

5. Compact structure can effectively save fifty percent installation space with ISO15552 standard cylinder.

6. There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.

7. Bumper is available and it can availably absorb excrescent energy.

8.Installing accessories with various specifications is optional.

■ Symbol

pneumatic cylinder symbol

Order Coder ACE Series Compact Cylinder

ACE^① 20^② x 30^③ S^④ B^⑤□^⑥□^⑦

① ACE → Model

ACE	Compact cylidner (Double acting)
ASE	Compact cylidner (Single acting spring extend)
ATE	Compact cylidner (Single acting spring return)
ACED	Compact cylidner (Double rod)
ACEJ	Compact cylidner (Adjustable stroke)
TACE	Compact cylidner (Double acting non-rotating with yoke)
TACED	Compact cylidner (Double rod non-rotating with yoke)

② 20 → Bore size

Model	Bore size
ACE/ACED/ACEJ	12 16 20 25 32 40 50 63 80 100 125
ASE/ATE/TACE/TACED	12 16 20 25 32 40 50 63 80 100

③ 20 → Stroke

Refer to stroke table for details

④ S → Magnet

Blank	Without magnet
S	With magnet

⑤ B → Rod type

Model	Rod type
ACE/ACED/ACEJ/ASE/ATE	Blank: Female thread
ACE/ACED/ACEJ/ASE/ATE	B: Male thread
TACE/TACED	No

⑥ □ → Rod type

Model	Mounting type
All model	Blank: No accessories
ACE ASE ATE	FA: FA type
	FB: FB type
	CA: CB type
	CB: CB type
	FTC: FTC type
	LB: LB type
	SDB: SDB type
ACED ACEJ	FA: FA type
	FTC: FTC type
	LB: LB type
TACED	FB: FB type

⑦ □ → Thread type

Blank	PT
G	G
T	NPT

※Standard thread is blank here.

■ Inner structure and material of major parts

ACE pneumatic cylinder structure

Product Specifications

■ Specifications

Bore(mm)	12	16	20	25	32	40	50	63	80	100	125
Working medium	Clean air(40um Filteration)
Acting type	Double acting
	Single acting-Push type, Single acting-Pull type
Pressure	Double acting: 0.1 to 1.0Mpa (14 to 145psi)
	Single acting: 0.2 to 1.0Mpa (28 to 145psi)
Guaranteed pressure	1.5Mpa (215psi)
Speed range	Double acting: 30 to 500mm/s Single acting: 50 to 500mm/s
Tolerance of stroke	Stroke≤100^+1.0 Stroke>100^+1.5
Cushion type	Bumper
Port size	M5X0.8				G1/8						G1/4

■ Stroke

Bore size(mm)			Standard stroke(mm)	Max. standard stroke
Common type	Double acting	12	5 10 15 20 25 30 35 40 45 50	50
		16	5 10 15 20 25 30 35 40 45 50 55 60 70 75	75
		20	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100	100
		25	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150	150
		32 40	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200	200
		50 63	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250	250
		80 100 125	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100 110 120 125 150 160 175 200 225 250 275 300	300
	Single acting	12	5 10	10
	Single acting	16~100	5 10 15 20 25	25
Non-rotating yoke	Double acting	12	5 10 15 20 25 30 35 40 45 50	50
		16	5 10 15 20 25 30 35 40 45 50 55 60 70 75	75
		20 25	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100	100
		32 40	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100	100
		50 63	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100	100
		80 100	5 10 15 20 25 30 35 40 45 50 55 60 70 75 80 90 100	100

Main Dimensions

ASE Pneumatic cylinder dimensions

ASE Air cylinder dimensions

ACE pneumatic piston dimensions

Product FAQ

Q1: How do I increase the pressure in my pneumatic cylinder?

A: Another way to increase or decrease the forces generated by the cylinder is to choose a cylinder with either a more significant (Greater force) or smaller (Less force) diameter. Remember, the larger the diameter, the greater the surface area of the piston, and the greater the pressure.

Q2: How do you adjust air cylinder speed?

A: When the cylinder piston extends, the air behind it is compressed because air can't escape easily. When you tighten the flow control screw, the movement of the piston slows down because air is restricted even further. Controls the speed of a cylinder or restricts air flow. Simply turn the needle valve to adjust air speed.

Q3: How much force can a pneumatic cylinder produce?

A: The air cylinder theory force unit is N, such as 32mm bore at 0.1Mpa working push force is 80.4N. The chart is derived from the calculation formula of the theory force for reference only.

pneumatic cylinder force table
